MBM10415AH - ECL RAM

Description

The Fujitsu MBM10415AH is a fully decoded 1024-bit ECl read!

Features

  • on-chip voltage compensation for improved noise margin. The MBM10415AH offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM10415AH is specified over a temperature range of from 0 °C 75°C (ambient). It also features frit-sealed.

📥 Download Datasheet

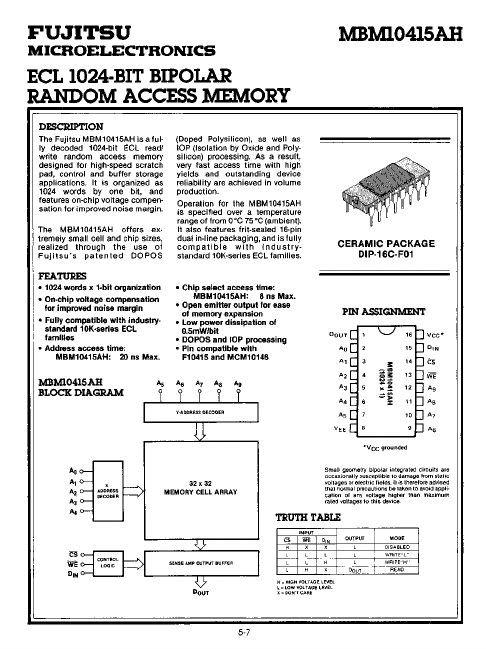

Datasheet preview – MBM10415AH

📁 Similar Datasheet

Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS ECL 1024·BIT BIPOLAR RANDOM ACCESS .MEMORY MBMl0415AH DESCRIPTION The Fujitsu MBM10415AH is a fully decoded 1024-bit ECl read! write random access memory designed for high-speed scratch pad, control and buffer storage applications_ It is organized as 1024 words by one bit, and features on-chip voltage compensation for improved noise margin. The MBM10415AH offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM10415AH is specified over a temperature range of from 0 °C 75°C (ambient).
