MBM10422A-7 - ECL RAM

Description

The Fujitsu MBM10422A-7 is a fully decoded 1024-bit Eel read/write random access memory designed for high speed scratch pad, microprocessor and buffer storage applications.

Features

  • Organized as 256 x 4.
  • Address Access Time: 7ns Max.
  • Fully compatible with industry standard 10K series Eel families.
  • Open emitter for easy memory expansion.
  • DOPOS and lOP processing.
  • Pin compatible with F10422.
  • low power dissipation: 1040mW.

📥 Download Datasheet

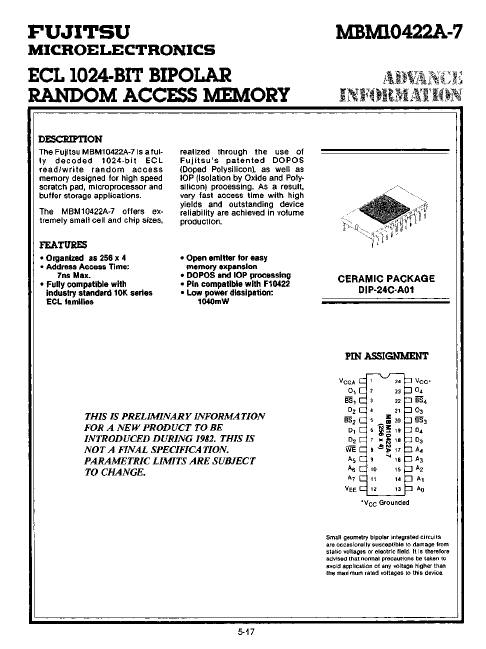

Datasheet preview – MBM10422A-7

📁 Similar Datasheet

Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS ECL l024·BIT BIPOLAR RANDOM ACCESS MEMORY MBMl0422A·7 DESCRIPTION The Fujitsu MBM10422A-7 is a fully decoded 1024-bit Eel read/write random access memory designed for high speed scratch pad, microprocessor and buffer storage applications. The MBM10422A-7 offers extremely small cell and chip sizes, realized through the use of Fuj itsu 's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. FEATURES • Organized as 256 x 4 • Address Access Time: 7ns Max.
