MBM10470A-20 - ECL RAM

Description

The Fujitsu MBM10470A is a fully decoded 1024-bit ECl readlwrite random access memory designed for high-speed scratch pad, control and buffer storage applications.

Features

  • on-chip voltage compensation for improved noise margin. The MBM10470A offers extremely small cell and chip size, realized through the use of Fujitsu's patented DOPOS (Doped Polysili- con), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM10470A is specified over a temperature range of from 0 DC to 75 DC (ambient). It features frit-sealed 1.

📥 Download Datasheet

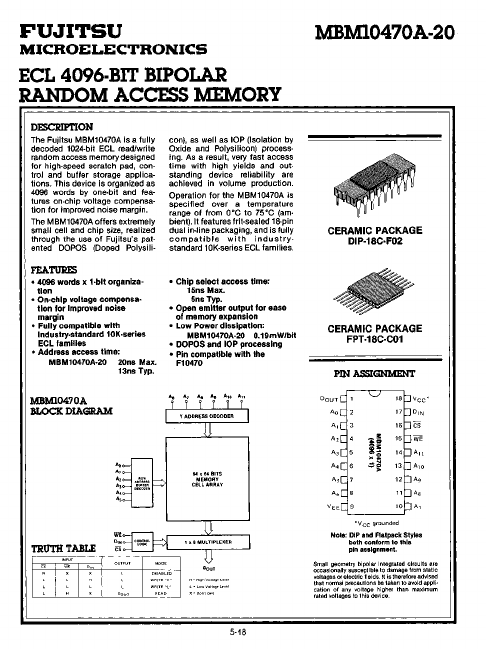

Datasheet preview – MBM10470A-20

📁 Similar Datasheet

Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS ECL 4096·BIT BIPOLAR RANDOM ACCESS MEMORY MBMI0470A·20· DESCRIPTION The Fujitsu MBM10470A is a fully decoded 1024-bit ECl readlwrite random access memory designed for high-speed scratch pad, control and buffer storage applications. This device is organized as 4096 words by one-bit and features on-chip voltage compensation for improved noise margin. The MBM10470A offers extremely small cell and chip size, realized through the use of Fujitsu's patented DOPOS (Doped Polysili- con), as well as lOP (Isolation by Oxide and Polysilicon) processing. As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production. Operation for the MBM10470A is specified over a temperature range of from 0 DC to 75 DC (ambient).
