MBM2148-55L - MOS STATIC RANDOM ACCESS MEMORY

Key Features

  • Organization: 1024 words x 4 bits.
  • Static operation; no clock or timing strobe required.
  • Fast access time: MBM2148-55L: 55 ns max. MBM2148.
  • 70L: 70 ns max.
  • Low power consumption: Icc = 125mA max. IS8 = 20mA max.
  • Single +5V DC supply voltage (±10% tolerance).
  • Common data input/output.
  • TIL compatible inputs/outputs.
  • Three.
  • state output with OR.
  • tie capability.
  • Chip select for simplified memory expansion,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBM200GR12 IGBT POWER MODULE Hitachi
MBM200GR6 IGBT POWER MODULE Hitachi
MBM200GS12AW IGBT POWER MODULE Hitachi
MBM200GS6AW IGBT POWER MODULE Hitachi
MBM200JS12AW IGBT POWER MODULE Hitachi

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MBM2148-70L MOS STATIC RANDOM ACCESS MEMORY
MBM2147H MOS STATIC RANDOM ACCESS MEMORY
MBM2149 MOS Static RAM
MBM27128-20 UV Erasable ROM
MBM27128-25 UV Erasable ROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

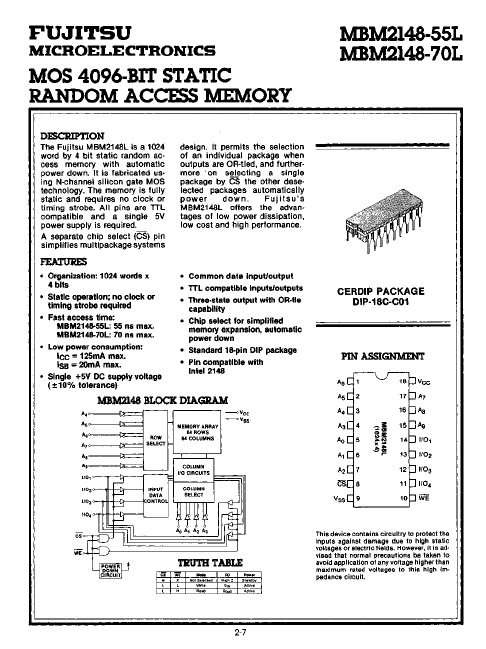

FUJITSU MICROELECTRONICS MOS 4096·BIT STATIC RANDOM ACCESS lVIEl.(ORY MBM2148·55L MBM2148·70L DfSCRIPTION The Fujitsu MBM2148L is a 1024 word by 4 bit static random access memory with automatic power down. It is fabricated us· ing N·channel silicon gate MOS technology. The memory is fully static and requires no clock or timing strobe. All pins are TIL compatible and a single 5V power supply is required. A separate chip select (CS) pin simplifies multipackage systems design. It permits the selection of an individual package when outputs are OR·tied, and furthermore ·on selecting a single package by CS the other deselected packages automatically power down. Fujitsu's MBM2148L offers the advantages of low power dissipation, low cost and high performance.
