MBM2732A-X - UV 32K-Bit ROM

This page provides the datasheet information for the MBM2732A-X, a member of the MBM2732A UV 32K-Bit ROM family.

Description

The Fujitsu MBM2732A is a high speed 32,768-bit static N-channel MOS erasable and electrically reprogrammable read only memory (EPROM).

It is especially well suited for applications where rapid turn-around and/or bit pattern experimentation are important.

Fujitsu

📥 Download Datasheet

Datasheet Details

Part number	MBM2732A-X
Manufacturer	Fujitsu
File Size	115.73 KB
Description	UV 32K-Bit ROM
Datasheet	MBM2732A-X Datasheet

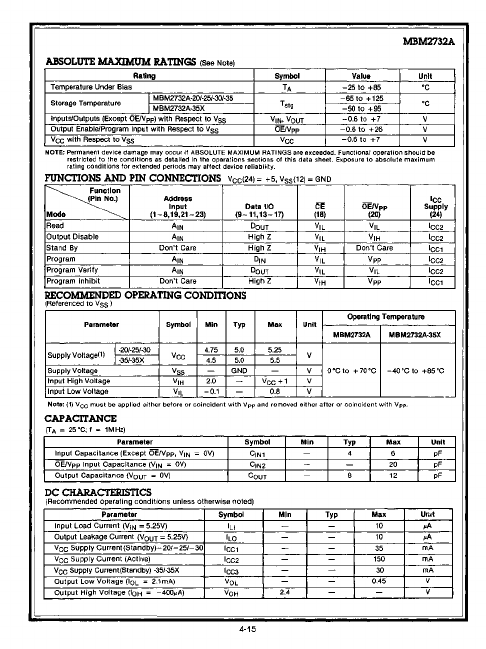

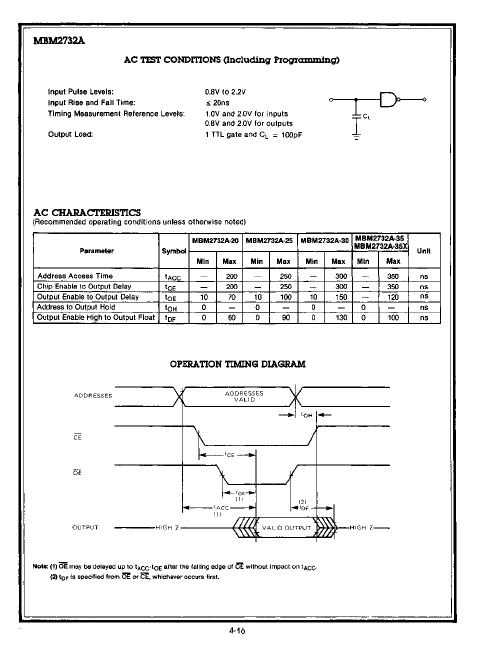

Additional preview pages of the MBM2732A-X datasheet.

📁 Similar Datasheet

MBM27C256A - CMOS 256K UV EPROM (ETC)
MBM27C512-25 - C-MOS 512K-BIT EPROM (ETC)
MBM200GR12 - IGBT POWER MODULE (Hitachi)
MBM200GR6 - IGBT POWER MODULE (Hitachi)
MBM200GS12AW - IGBT POWER MODULE (Hitachi)
MBM200GS6AW - IGBT POWER MODULE (Hitachi)
MBM200JS12AW - IGBT POWER MODULE (Hitachi)
MBM200JS12EW - IGBT POWER MODULE (Hitachi)
MBM2212-20 - MOS RANDOM ACCESS MEMORY (Fujitsu Media Devices)
MBM2212-25 - MOS RANDOM ACCESS MEMORY (Fujitsu Media Devices)

Other Datasheets by Fujitsu

MBM2732A - UV 32K-Bit ROM
MBM2732-35 - UV 32K-Bit ROM
MBM2732-45 - UV 32K-Bit ROM
MBM27128-20 - UV Erasable ROM
MBM27128-25 - UV Erasable ROM
MBM27128-30 - UV Erasable ROM
MBM2716 - UV Erasable ROM
MBM2716H - UV Erasable ROM

Full PDF Text Transcription

Click to expand full text

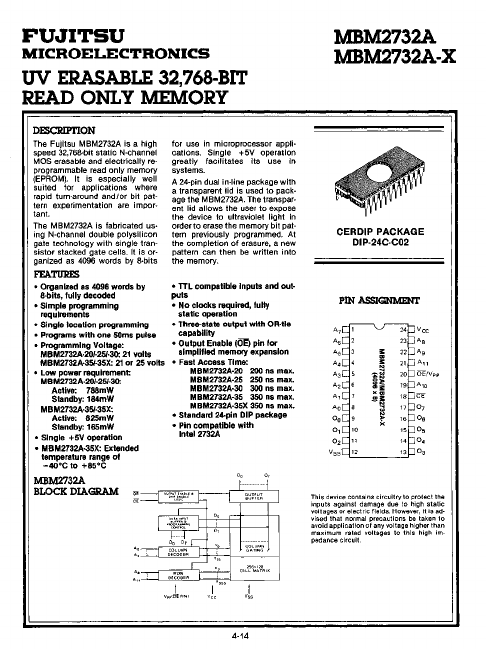

FUJITSU MICROELECTRONICS UV ERASABLE 32,768·BIT READ ONLY MEMORY MBM2732A MBM2732A·X DESCRIPTION The Fujitsu MBM2732A is a high speed 32,768-bit static N-channel MOS erasable and electrically reprogrammable read only memory (EPROM). It is especially well suited for applications where rapid turn-around and/or bit pattern experimentation are important. The MBM2732A is fabricated using N-channel double polysilicon gate technology with single transistor stacked gate cells. It is organized as 4096 words by 8-bits for use in microprocessor applications. Single +5V operation greatly facilitates its use in systems. A 24-pin dual in-line package with a transparent lid is used to package the MBM2732A.
