MBM27C64-30 - CMOS EPROM

Download the MBM27C64-30 datasheet PDF. This datasheet also covers the MBM27C64-25 variant, as both devices belong to the same cmos eprom family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MBM27C64 is a high speed 65,536-bit static Complementary MOS erasable and electrically reprogrammable read only memory (EPROM).

It is especially suited for applications where the extremely low power consumption of CMOS is essential.

Key Features

  • CMOS Power Consumption: 5OOp. W max. (Standby) 5p. W typ. (Standby) 4OmW/MHz (Active).
  • Organized as 8192 words by 8-blts, fully decoded.
  • Utilizes the same simple programming requirements as MBM2764.
  • Single location programming.
  • Programming pulse may be reduced to 25 ns to cut programming time in half.
  • No clock required, fully static operation MB:M2'lC64 BLOCK.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBM27C64-25-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MBM27C256A CMOS 256K UV EPROM ETC
MBM27C512-25 C-MOS 512K-BIT EPROM ETC
MBM200GR12 IGBT POWER MODULE Hitachi
MBM200GR6 IGBT POWER MODULE Hitachi
MBM200GS12AW IGBT POWER MODULE Hitachi

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MBM27C64-25 CMOS EPROM
MBM27C1000-15 CMOS 1M-Bit UV EPROM
MBM27C1000-20 CMOS 1M-Bit UV EPROM
MBM27C1000-25 CMOS 1M-Bit UV EPROM
MBM27C1028-15 CMOS 1M-Bit UV EROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

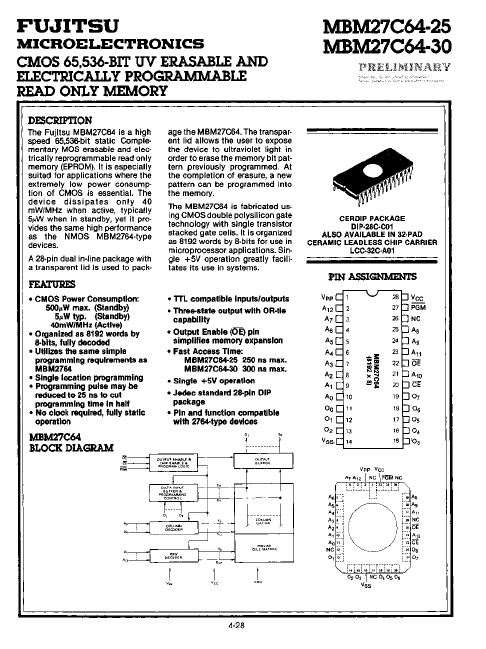

FUJITSU MICROELECTRONICS CMOS 65,536·BIT UV ERASABLE AND om ELECTRICALLY PROGRAMMABLE READ Y MElVIORY MBM27C64·25 MBM27C64·30 DESCRIPTION The Fujitsu MBM27C64 is a high speed 65,536-bit static Complementary MOS erasable and electrically reprogrammable read only memory (EPROM). It is especially suited for applications where the extremely low power consumption of CMOS is essential. The device dissipates only 40 mW/MHz when active, typically 5p.W when in standby, yet it provides the same high performance as the NMOS MBM2764-type devices. A 28-pin dual in-line package with a transparent lid is used to pack- FEATURES • CMOS Power Consumption: 5OOp.W max. (Standby) 5p.W typ.
