1N4148G - Switching Diode

Datasheet Summary

Features

  • Fast switching speed.
  • High conductance.
  • MSL 1 Switching Diode 1N4148G Mechanical Data.
  • Case: SOD-723.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-723 Ordering Information Part Number 1N4148G Package SOD-723 Shipping Quantity 10000 pcs / Tape & Reel Marking Code T4 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse.

📥 Download Datasheet

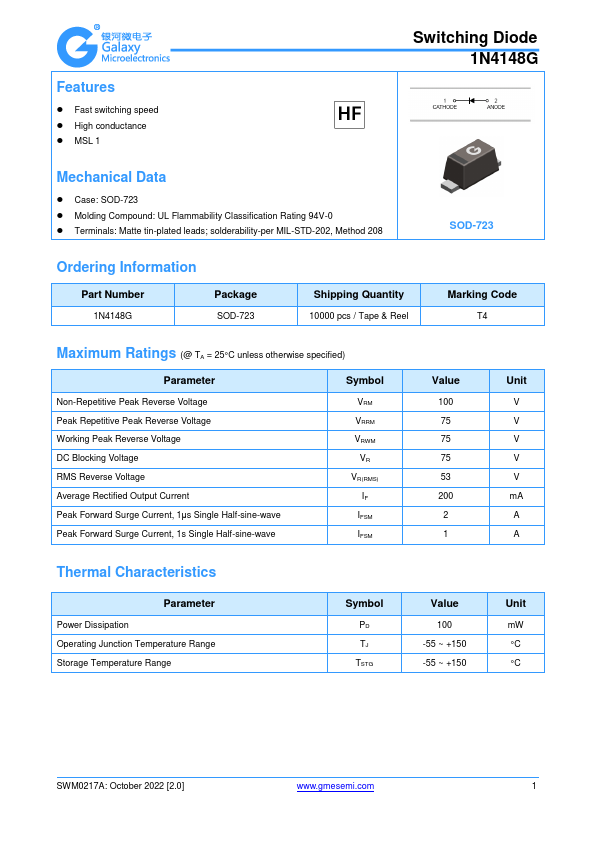

Datasheet preview – 1N4148G

Datasheet Details

Part number 1N4148G
Manufacturer GME
File Size 381.01 KB
Description Switching Diode
Datasheet download datasheet 1N4148G Datasheet

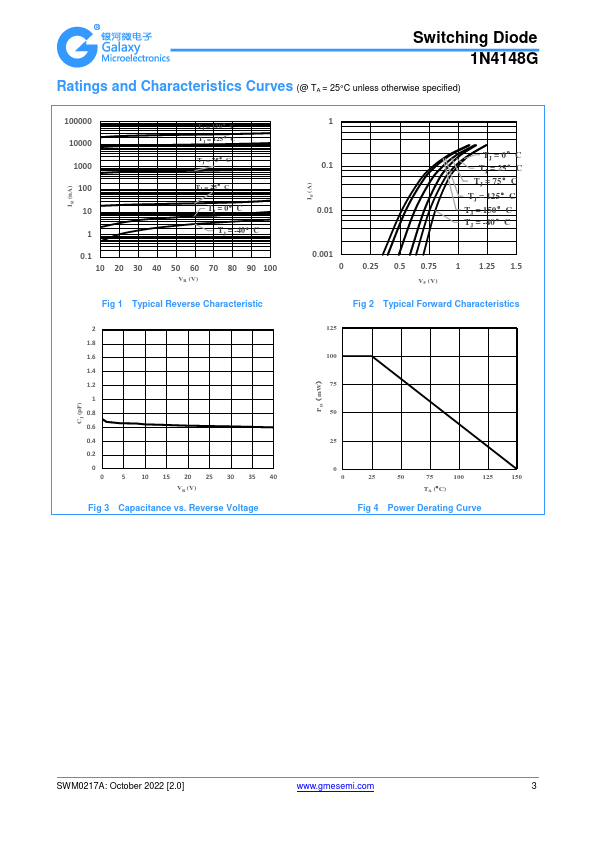

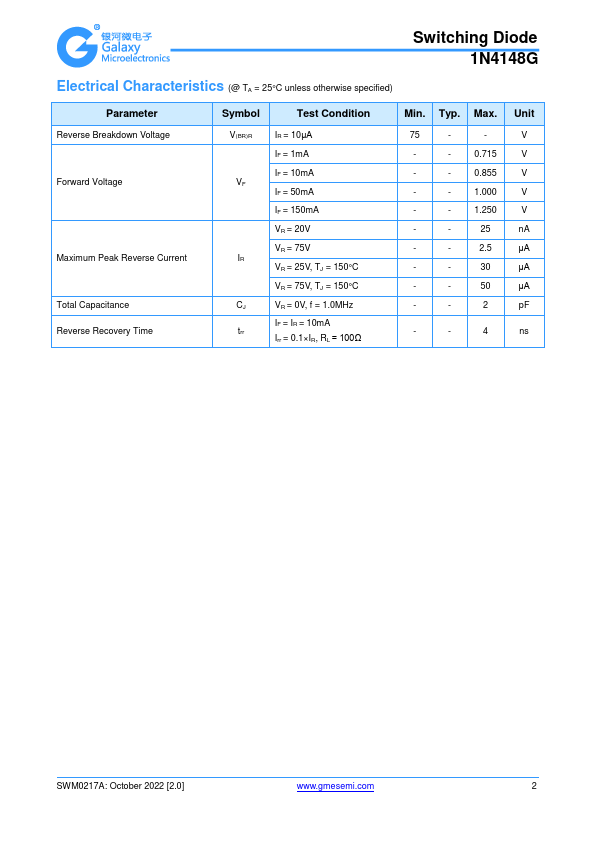

Additional preview pages of the 1N4148G datasheet.
