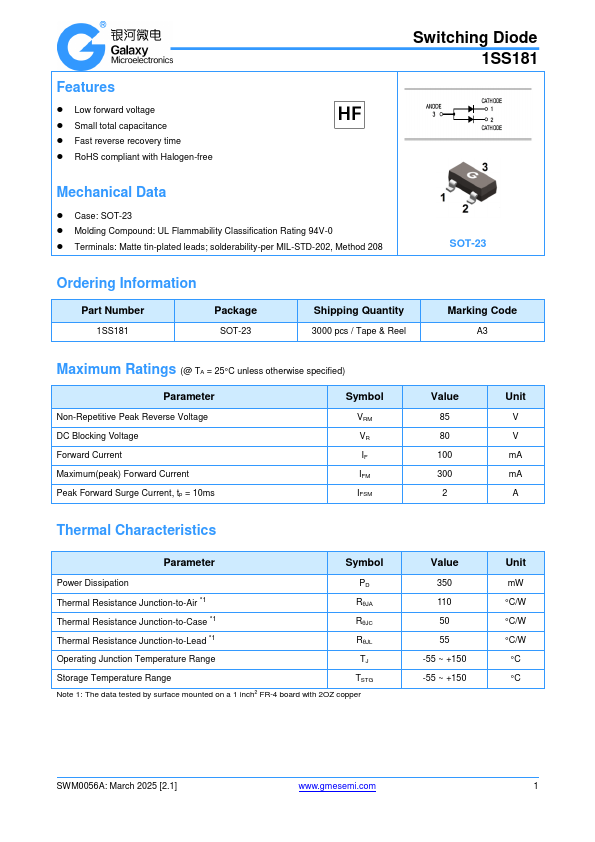

Galaxy Century Microelectronics 1SS181
Switching Diode
| Part No. | 1SS181 |
|---|---|
| Datasheet | 1SS181 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Switching Diode |
| Buy | Stock & Price |
FEATURES
● Low forward voltage● Small total capacitance
● Fast reverse recovery time
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SOT-23● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Switching Diode 1SS181 SOT-23 Ordering Information Part Number 1SS181 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code A3
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage DC Blocking Voltage Forward Current Maximum(peak) Forward Current Peak Forward Surge Current, tp = 10ms Symbol VRM VR IF IFM IFSM Value 85 80 100 300 2 Unit V V mA mA A Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating Junction Temperature Range TJ Storage Temperature Range TSTG Note 1: The data tested by...
