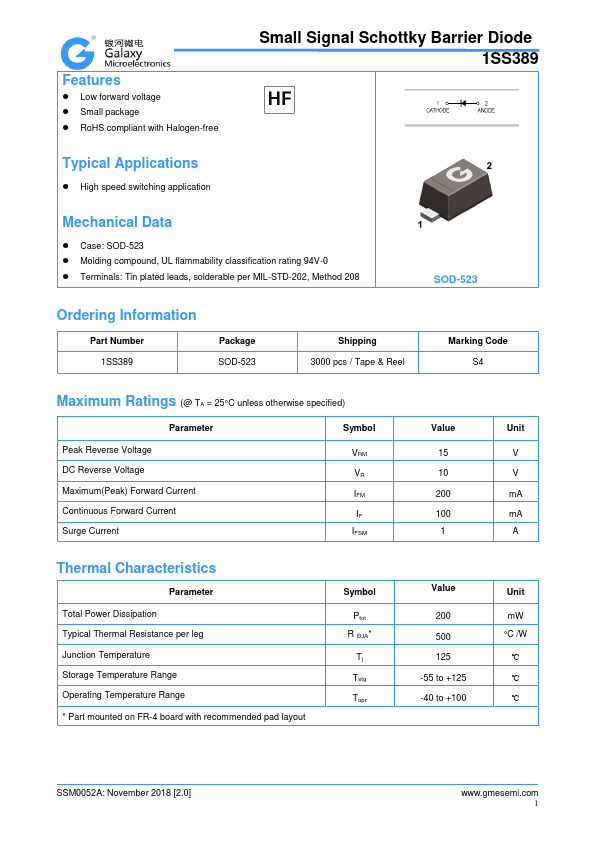

Galaxy Century Microelectronics 1SS389
Small Signal Schottky Barrier Diode
| Part No. | 1SS389 |
|---|---|
| Datasheet | 1SS389 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Small Signal Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● Low forward voltage● Small package
● RoHS compliant with Halogen-free Small Signal Schottky Barrier Diode 1SS389 Typical
APPLICATIONS
● High speed switching applicationMECHANICAL DATA
● Case: SOD-523● Molding compound, UL flammability classification rating 94V-0

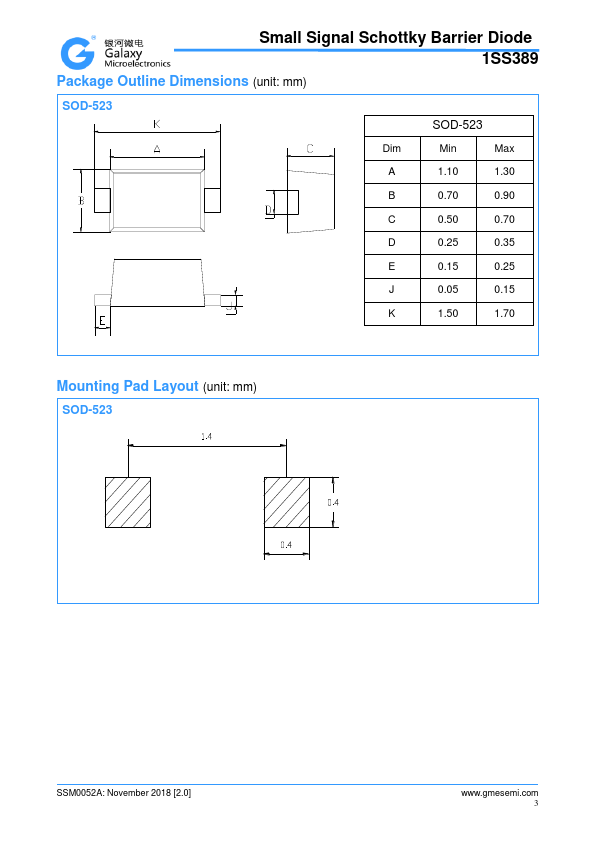

● Terminals: Tin plated leads, solderable per MIL-STD-202, Method 208 SOD-523 Ordering Information Part Number 1SS389 Package SOD-523 Shipping 3000 pcs / Tape & Reel Marking Code S4
MAXIMUM RATINGS

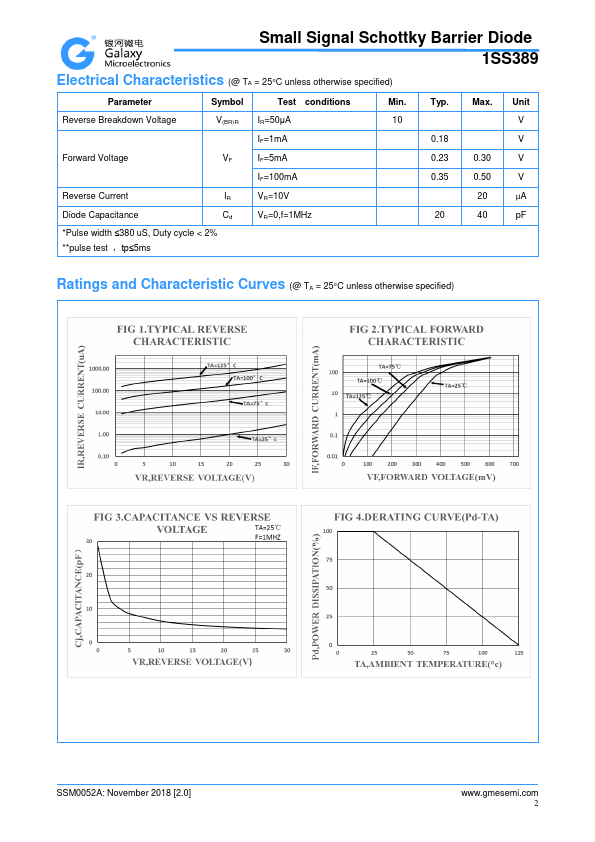

(@ TA = 25°C unless otherwise specified) Parameter Peak Reverse Voltage DC Reverse Voltage Maximum(Peak) Forward Current Continuous Forward Current Surge Current Symbol VRM VR IFM IF IFSM Thermal Characteristics Parameter Total Power Dissipation Typical Thermal Resistance per leg Junction Temperature Storage Temperature Range Operating Temperature Range * Part mounted on FR-4 board with recommended pad layout Symbol Ptot R ΘJA* Tj Tstg Topr Value Unit 15 V 10 V 200 mA 100 mA 1 A Value 200 500 125 -55 to +125 -40 to +100...
