1SS400 - High speed Switching Diode

Datasheet Summary

Features

  • Extremely small surface mounting type.
  • Small package.
  • High speed and high reliability. Pb Lead-free Production specification 1SS400.

📥 Download Datasheet

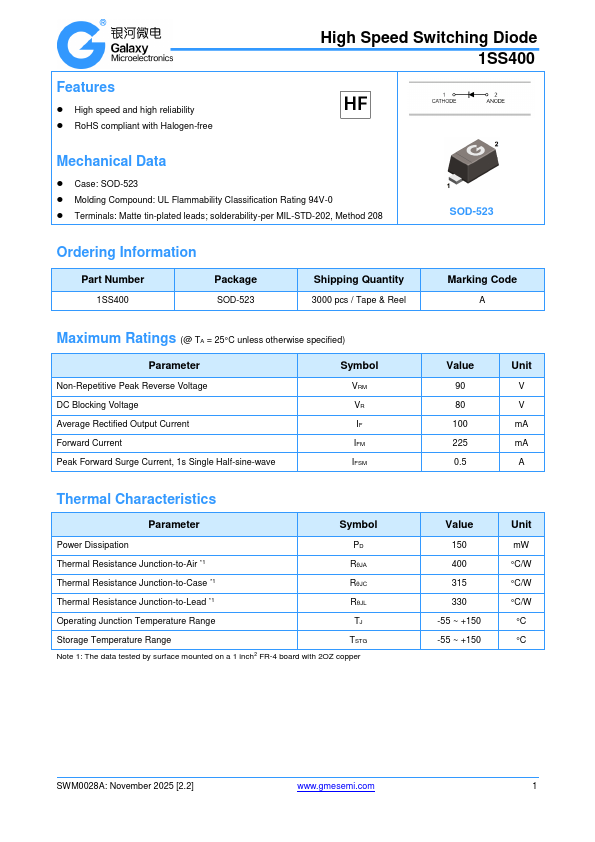

Datasheet preview – 1SS400

Datasheet Details

Part number 1SS400
Manufacturer GME
File Size 197.18 KB
Description High speed Switching Diode
Datasheet download datasheet 1SS400 Datasheet

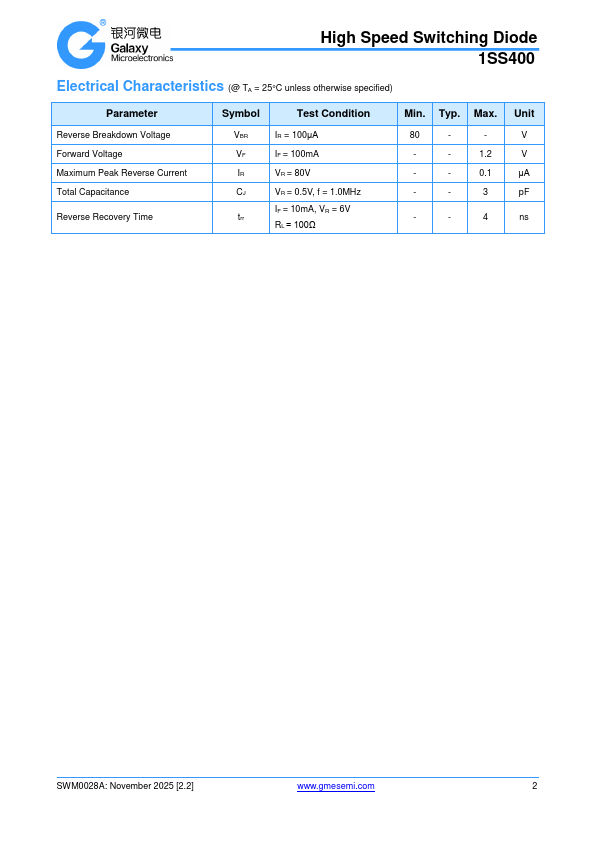

Additional preview pages of the 1SS400 datasheet.

📁 Similar Datasheet

  • 1SS400 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
  • 1SS400 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • 1SS400 - Switching Diode (ROHM)
  • 1SS400 - 200mW SURFACE MOUNT SWITCHING DIODES (TIPTEK)
  • 1SS400 - Surface Mount Switching Diodes (Bruckewell)
  • 1SS400 - High Speed Switching Diode (Eris)
  • 1SS400 - 90Volts High Speed Switching Diodes (MCC)
  • 1SS400 - High Speed Switching Diode (JCET)
  • 1SS400 - SWITCHING DIODE (Unisonic Technologies)
  • 1SS400 - SMD High Speed Switching Diode (Taiwan Semiconductor)
Other Datasheets by GME
  • 1SS401 - Schottky barrier diode
  • 1SS404 - Silicon Epitaxial Planar Diode
  • 1SS422 - High speed Switching Diode
  • 1SS141 - SMALL SIGNAL SWITCHING DIODES
  • 1SS144 - SMALL SIGNAL SWITCHING DIODES
  • 1SS145 - SMALL SIGNAL SWITCHING DIODES
  • 1SS146 - SMALL SIGNAL SWITCHING DIODES
  • 1SS147 - SMALL SIGNAL SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text
High speed Switching Diode FEATURES  Extremely small surface mounting type.  Small package.  High speed and high reliability. Pb Lead-free Production specification 1SS400 APPLICATIONS  High speed switching. ORDERING INFORMATION Type No. Marking 1SS400 A SOD-523 Package Code SOD-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Peak reverse voltage VRM 90 DC Reverse voltage Forward output current VR 80 Io 100 Surge current(1s) Isurge 0.
