1SS404 Datasheet PDF

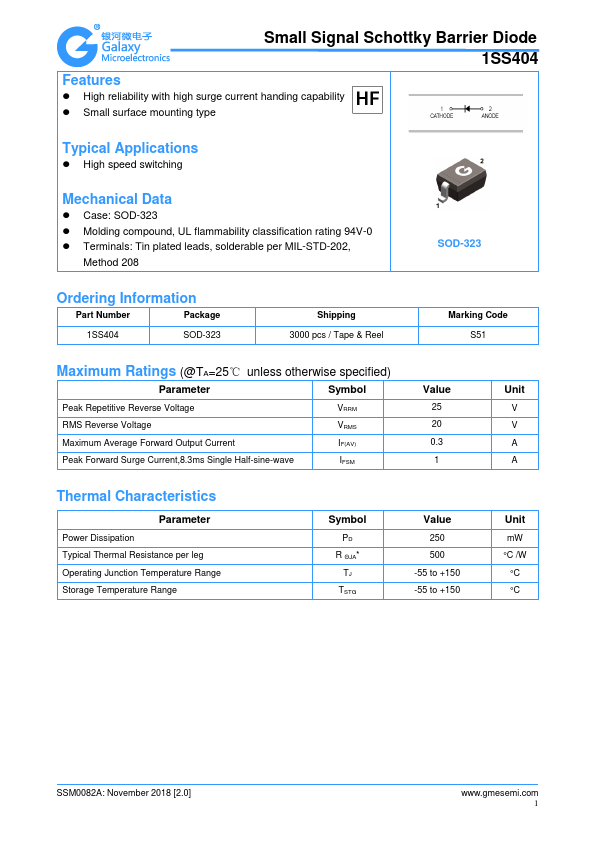

FEATURES

● High reliability with high surge current handing capability
● Small surface mounting type Typical

APPLICATIONS

● High speed switching

MECHANICAL DATA

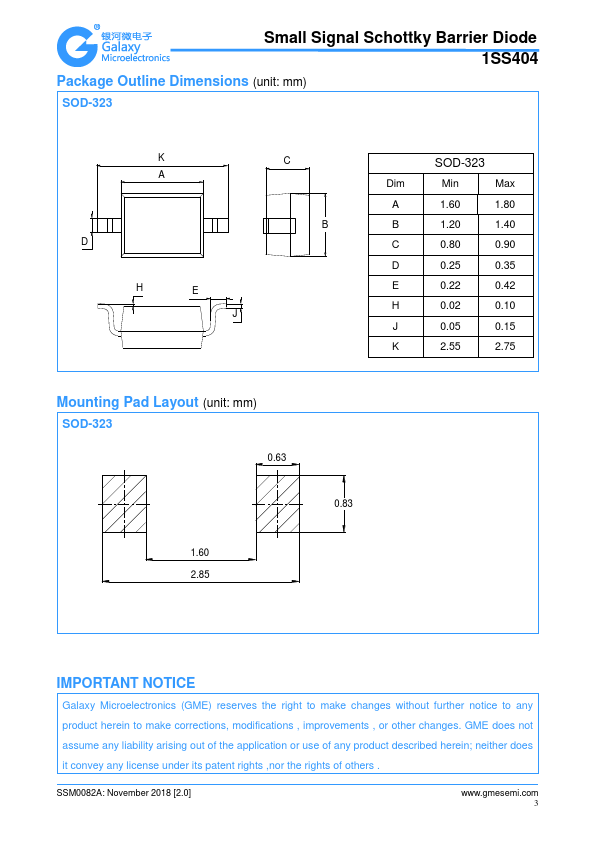

● Case: SOD-323
● Molding compound, UL flammability classification rating 94V-0
● Terminals: Tin plated leads, solderable per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number Package 1SS404 SOD-323 Shipping 3000 pcs / Tape & Reel Marking Code S51

MAXIMUM RATINGS

(@TA=25℃ unless otherwise specified) Parameter Symbol Peak Repetitive Reverse Voltage VRRM RMS Reverse Voltage VRMS Maximum Average Forward Output Current IF(AV) Peak Forward Surge Current,8.3ms Single Half-sine-wave IFSM Value 25 20 0.3 1 Unit V V A A Thermal Characteristics Parameter Power Dissipation Typical Thermal Resistance per leg Operating Junction Temperature Range Storage Temperature Range Symbol PD R ΘJA* TJ TSTG Value 250 500 -55 to +150 -55 to +150 Unit mW °C /W °C °C SSM0082A: November 2018 [2.0] 1 Small Signal Schottky Barrier Diode 1SS404

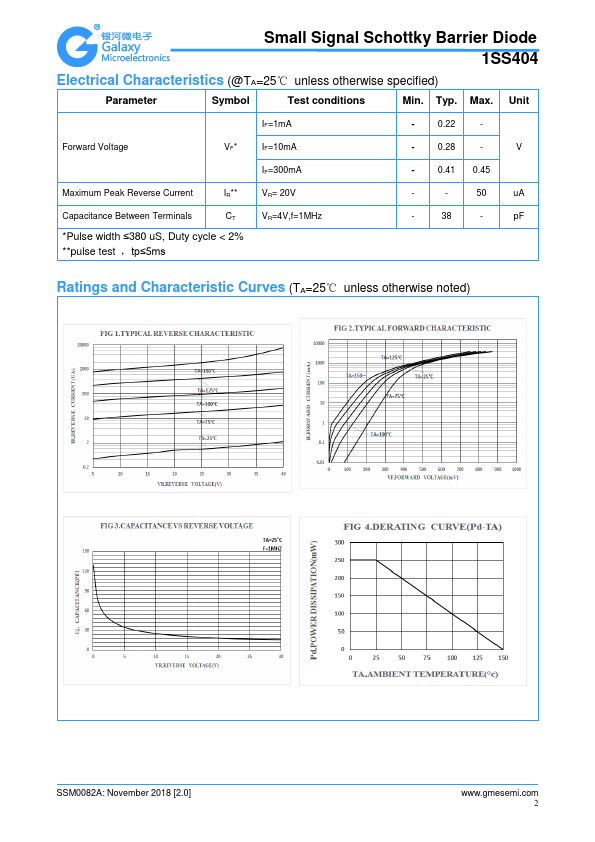

ELECTRICAL CHARACTERISTICS

(@TA=25℃ unless otherwise specified) Parameter Symbol Test conditions Min.
