2SC4155A - Silicon Epitaxial Planar Transistor

Key Features

  • z Small collector to emitter saturation voltage VCE(sat)=0.3V max z Excellent linearity of DC forward gain. z Super mini package for easy mounting Pb Lead-free.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC4155A SMALL-SIGNAL TRANSISTOR Isahaya Electronics
2SC4155A Silicon NPN Epitaxial Type Transistor Kexin
2SC4155A Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC4155 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC4155 SMALL-SIGNAL TRANSISTOR Isahaya Electronics

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SC4155 Silicon Epitaxial Planar Transistor
2SC4102 Silicon Transistor
2SC4115 NPN Epitaxial Planar Silicon Transistor
2SC4116 Transistor
2SC4180 Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

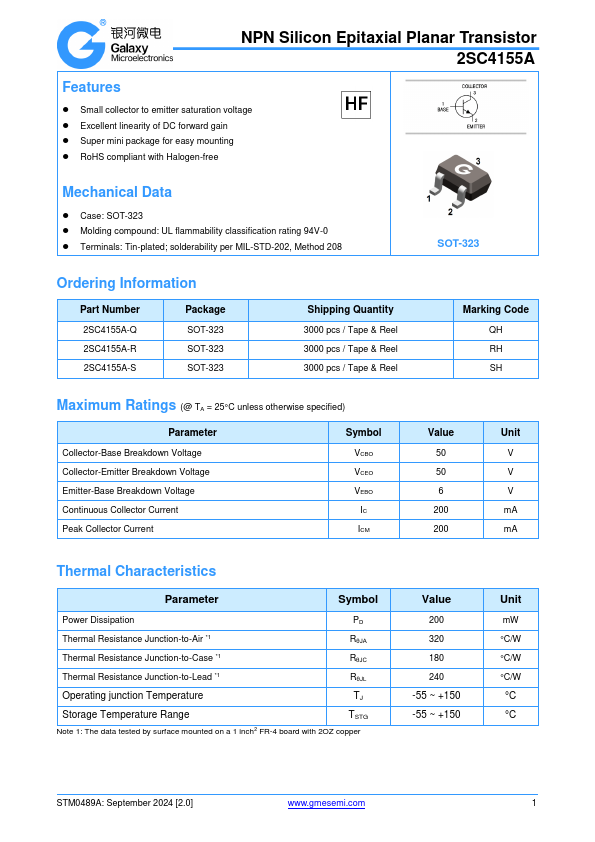

Silicon Epitaxial Planar Transistor FEATURES z Small collector to emitter saturation voltage VCE(sat)=0.3V max z Excellent linearity of DC forward gain. z Super mini package for easy mounting Pb Lead-free APPLICATIONS z For Hybrid IC,small type machine low frequency voltage Amplify application. Production specification 2SC4155A SOT-323 ORDERING INFORMATION Type No. Marking 2SC4155A HQ/HR/HS Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC Tstg Tj, Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Storage Temperature Junction Temperature 50 50 6 200 200 -55 to +150 150 Units V V V mA mW ℃ ℃ F103 Rev.A www.gmicroelec.
