2SC4672 - Low Frequency Transistor

Key Features

  • Low saturation voltage:VCE(sat)=0.1V at IC/IB=1A/50mA.
  • Excellent DC current gain characteristics.
  • Complements the 2SA1797.
  • MSL 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC4672 Low Frequency Transistor Rohm
2SC4672 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC4672 NPN EPITAXIAL PLANAR TRANSISTOR WEITRON
2SC4672 Low Frequency Transistor Kexin
2SC4672 NPN Transistor WILLAS

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SC4618 NPN Transistor
2SC4627 NPN High-frequency Transistor
2SC4003 NPN Epitaxial Planar Silicon Transistor
2SC4081 Silicon Epitaxial Planar Transistor
2SC4097 Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

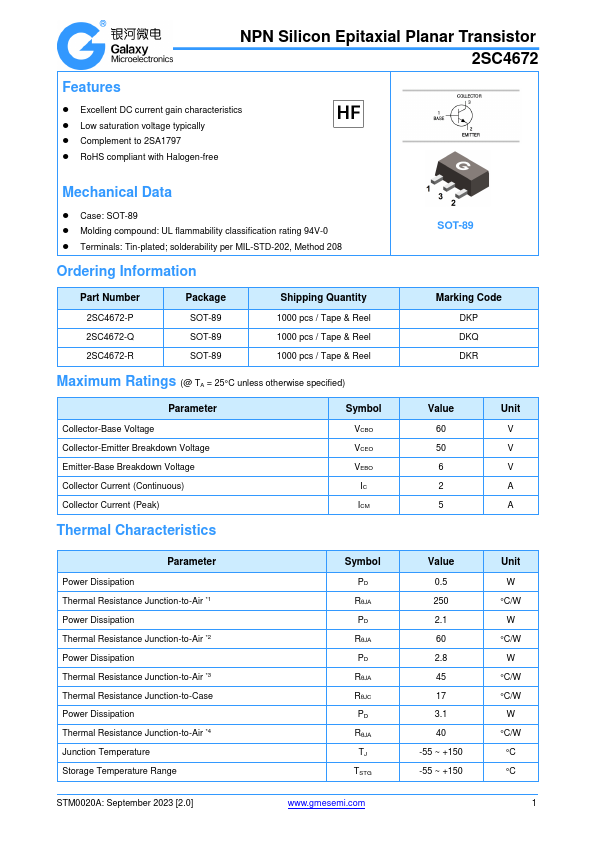

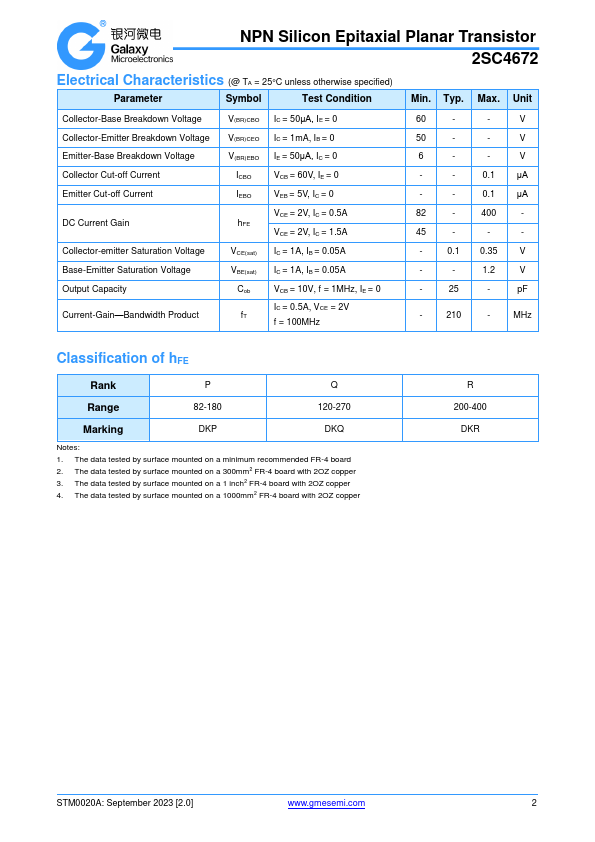

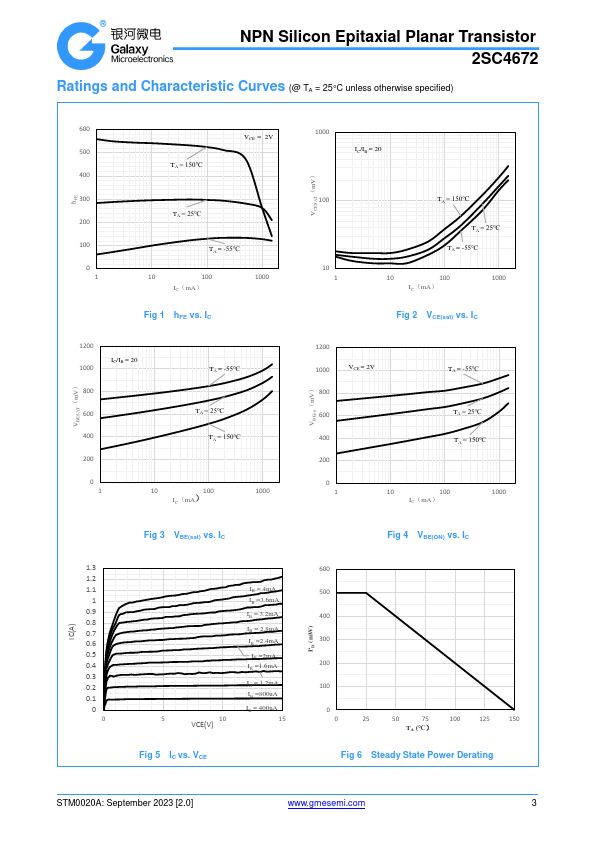

Production specification Low Frequency Transistor(50V,2A) FEATURES  Low saturation voltage:VCE(sat)=0.1V at IC/IB=1A/50mA.  Excellent DC current gain characteristics.  Complements the 2SA1797.  MSL 3 APPLICATIONS  Power amplifier application. Pb Lead-free ORDERING INFORMATION Type No. Marking 2SC4672 DKP/DKQ/DKR 2SC4672 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO Collector-Base Voltage Collector-Emitter Voltage 60 50 VEBO IC Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) 6 2 5 PC Collector Dissipation 500 Units V V V A mW Tj,Tstg Junction and Storage Temperature -55 to +150 ℃ E019 Rev.A www.gmesemi.
