2SC945 - Silicon Epitaxial Planar Transistor

Product Overview

GME

📥 Download Datasheet

2SC945 Silicon Epitaxial Planar Transistor by GME - Datasheet Preview — Datasheet preview – 2SC945

Datasheet Details

Part number	2SC945
Manufacturer	GME
File Size	338.84 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	2SC945 Datasheet

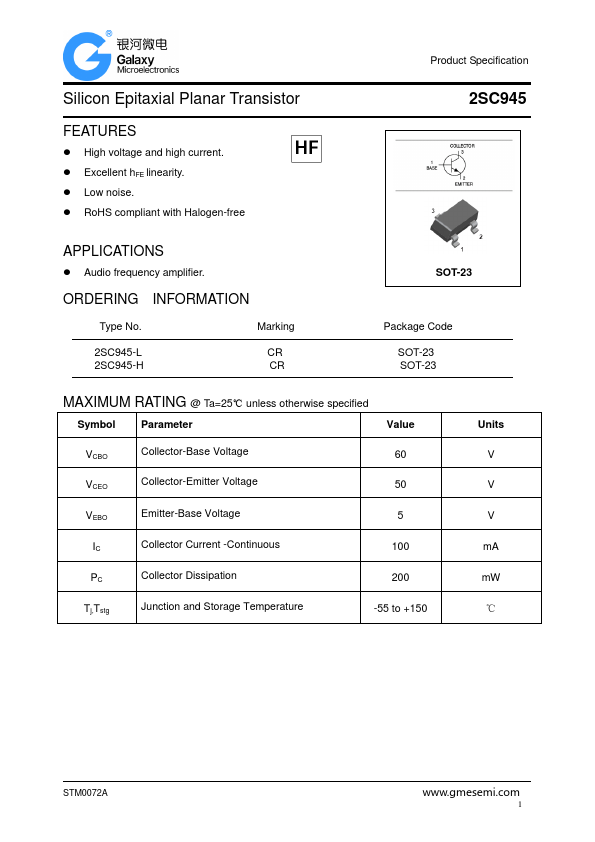

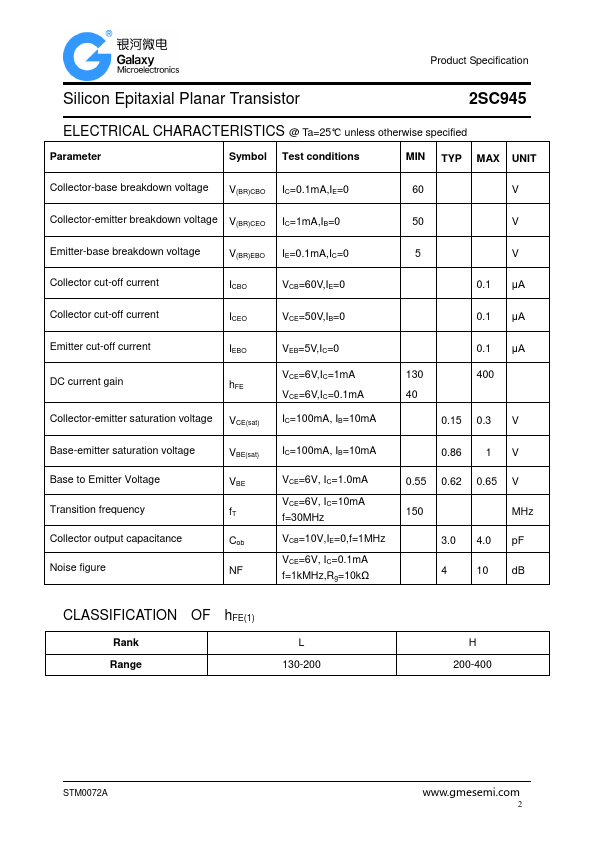

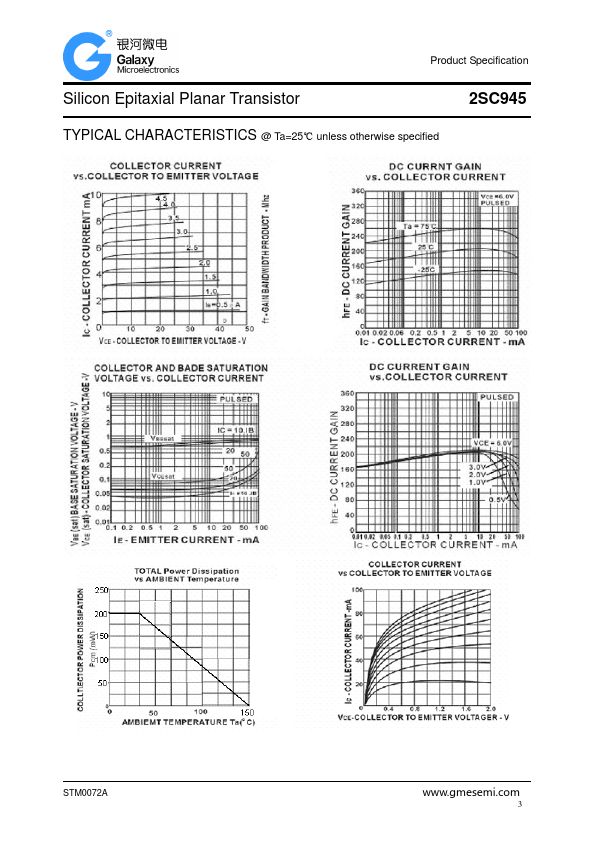

Additional preview pages of the 2SC945 datasheet.

Product details

Features

z High voltage and high current. z Excellent hFE linearity. z Low noise. Pb Lead-free 2SC945.
