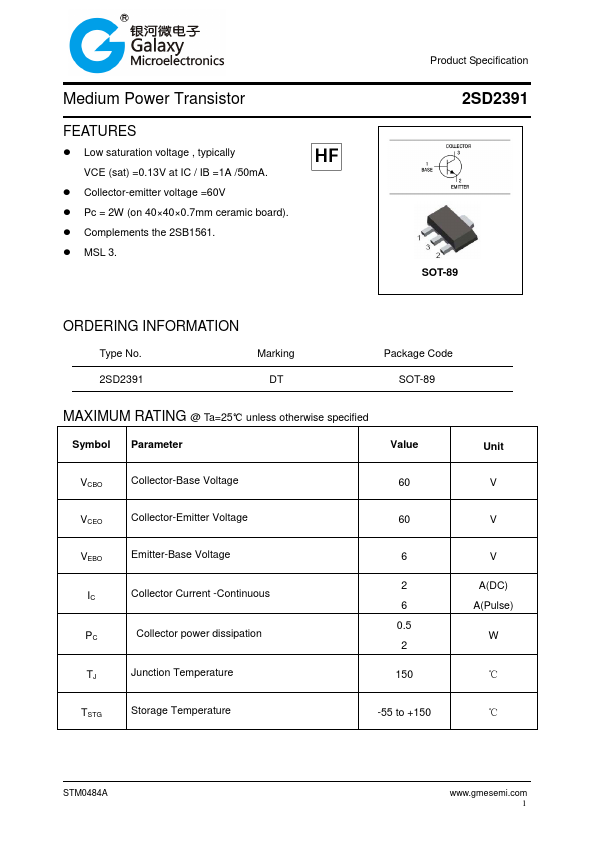

2SD2391
FEATURES
- Low saturation voltage , typically VCE (sat) =0.13V at IC / IB =1A /50m A.
- Collector-emitter voltage =60V
- Pc = 2W (on 40×40×0.7mm ceramic board).
- plements the 2SB1561.
- MSL 3.
Product Specification
SOT-89
ORDERING INFORMATION
Type No.
Marking
Package Code SOT-89
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter
Value
Unit
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
Collector Current -Continuous
Collector power dissipation
Junction Temperature
A(DC)
A(Pulse)
0.5 W
℃
TSTG
Storage Temperature
-55 to...
