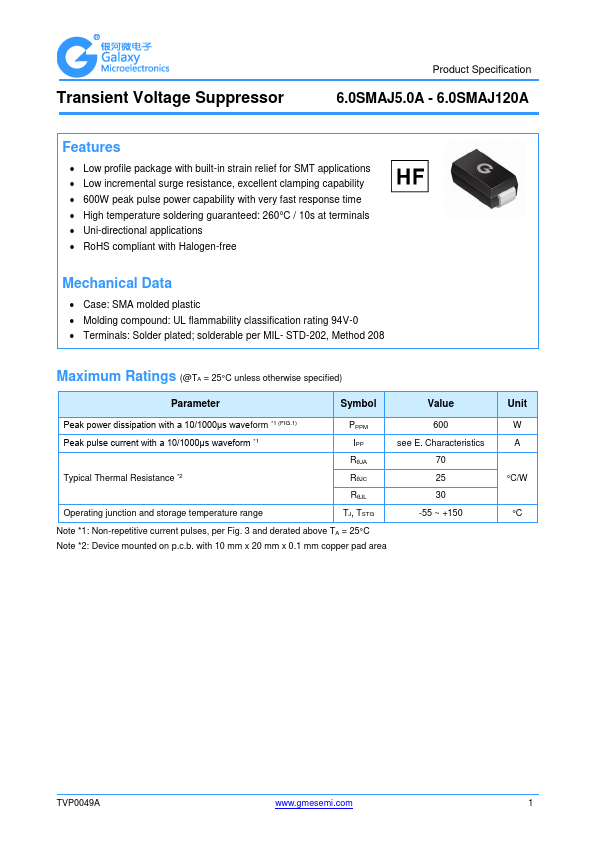

Galaxy Century Microelectronics 6.0SMAJ110A
Transient Voltage Suppressor
| Part No. | 6.0SMAJ110A |
|---|---|
| Datasheet | 6.0SMAJ110A Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Transient Voltage Suppressor |
| Buy | Stock & Price |
FEATURES
● Low profile package with built-in strain relief for SMT applications● Low incremental surge resistance, excellent clamping capability
● 600W peak pulse power capability with very fast response time
● High temperature soldering guaranteed: 260°C / 10s at terminals
● Uni-directional applications
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SMA molded plastic● Molding compound: UL flammability classification rating 94V-0
● Terminals: Solder plated; solderable per MIL- STD-202, Method 208
MAXIMUM RATINGS
(@TA = 25°C unless otherwise specified) Parameter Symbol Value Peak power dissipation with a 10/1000μs waveform *1 (FIG.1) Peak pulse current with a 10/1000μs waveform *1 PPPM IPP 600 see E. Characteristics Typical Thermal Resistance *2 RθJA 70 RθJC 25 RθJL 30 Operating junction and storage temperature range TJ, TSTG -55 ~ +150 Note *1: Non-repetitive current pulses, per Fig. 3 and derated above TA = 25°C Note *2: Device mounted on p.c.b. with 10 mm x 20 mm x 0.1...
