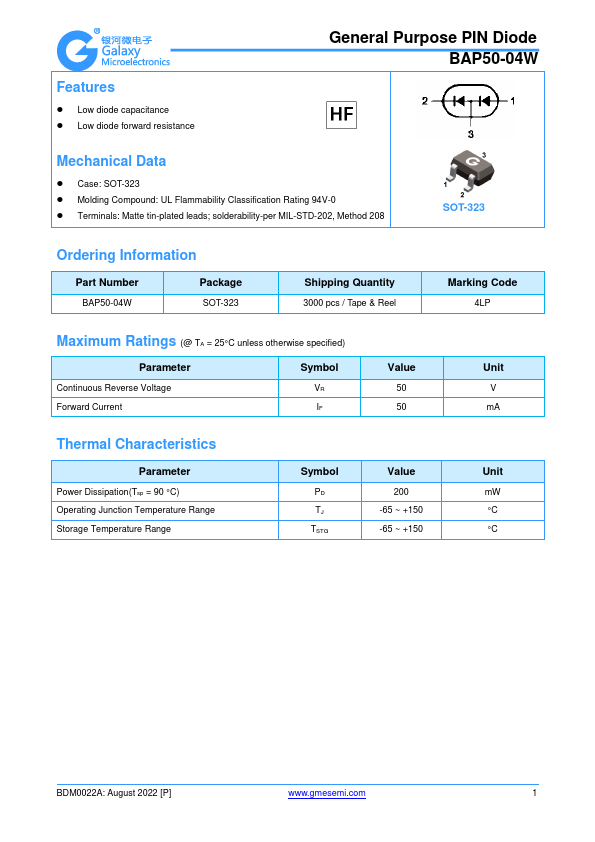

BAP50-04W
Features
- Low diode capacitance
- Low diode forward resistance
General Purpose PIN Diode BAP50-04W
Mechanical Data
- Case: SOT-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-323
Ordering Information
Part Number
Package
SOT-323
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
4LP
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Continuous Reverse Voltage Forward Current
Symbol
VR IF
Thermal Characteristics
Parameter
Power Dissipation(Tsp = 90 °C) Operating Junction Temperature Range Storage Temperature Range
Symbol
PD TJ TSTG
Value
50 50
Value
200 -65 ~ +150 -65 ~ +150
Unit
V m A
Unit m W °C °C
BDM0022A: August 2022 [P]
.gmesemi.
General Purpose PIN Diode BAP50-04W

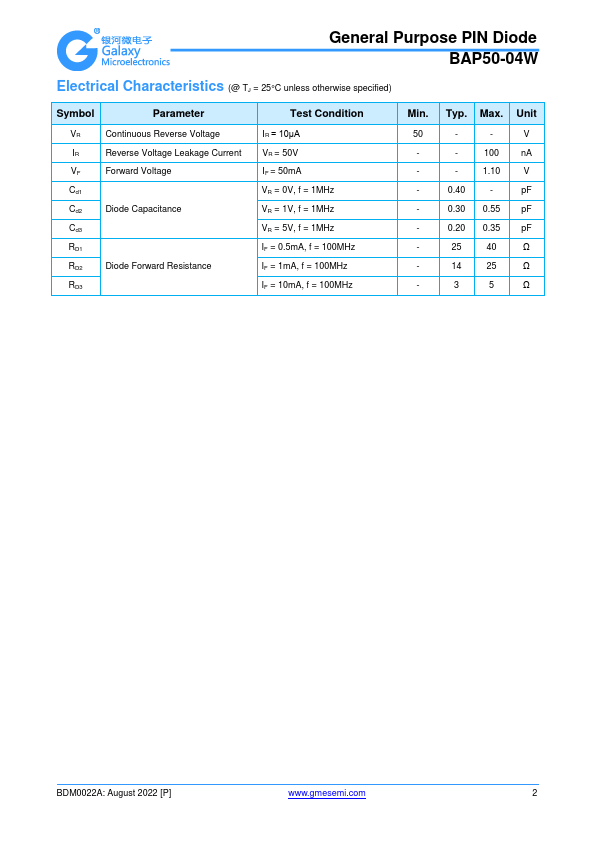

Electrical Characteristics (@ TJ = 25°C unless otherwise specified)
Symbol...
