BAS16H
Features
- Fast switching speed
- High conductance

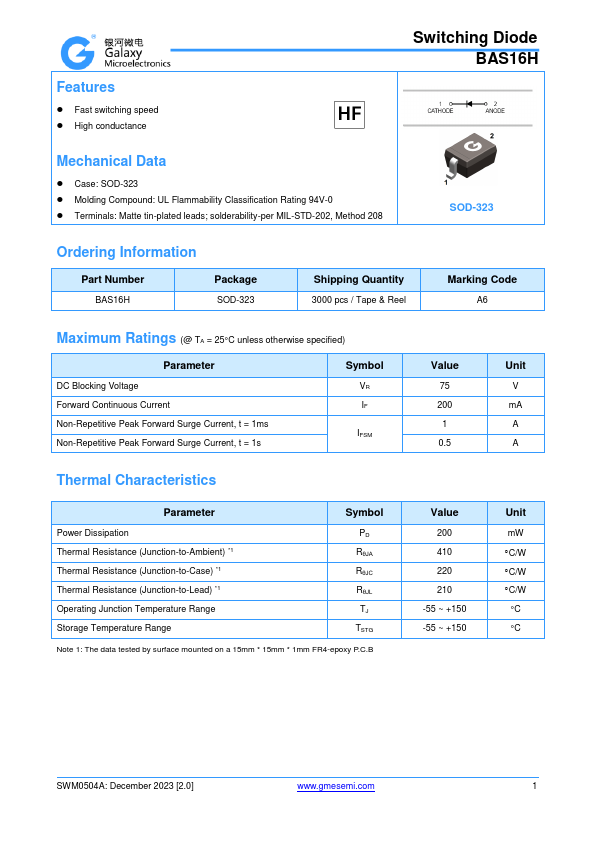

Switching Diode BAS16H
Mechanical Data
- Case: SOD-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOD-323
Ordering Information
Part Number
Package
SOD-323
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
A6
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
DC Blocking Voltage Forward Continuous Current Non-Repetitive Peak Forward Surge Current, t = 1ms Non-Repetitive Peak Forward Surge Current, t = 1s
Symbol
VR IF
IFSM
Value
75 200
1 0.5
Unit
V m A A A
Thermal Characteristics
Parameter
Symbol
Power Dissipation Thermal Resistance (Junction-to-Ambient)
- 1 Thermal Resistance (Junction-to-Case)
- 1 Thermal Resistance (Junction-to-Lead)
- 1 Operating Junction Temperature Range Storage Temperature Range
PD RθJA RθJC RθJL TJ TSTG
Note 1: The data tested by surface mounted on a 15mm
- 15mm
- 1mm...
