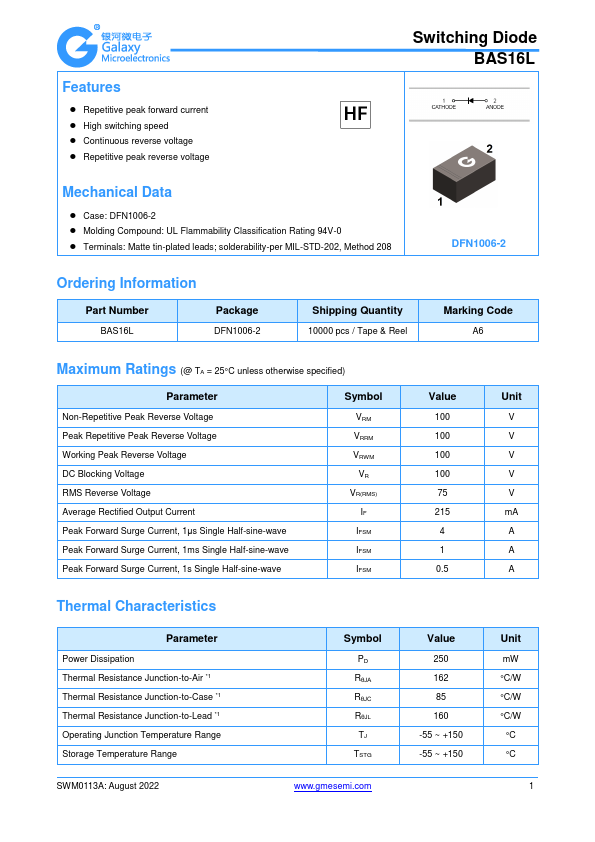

BAS16L - Switching Diode

Features

  • Repetitive peak forward current.
  • High switching speed.
  • Continuous reverse voltage.
  • Repetitive peak reverse voltage Switching Diode BAS16L Mechanical Data.
  • Case: DFN1006-2.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DFN1006-2 Ordering Information Part Number BAS16L Package DFN1006-2 Shipping Quantity 10000 pcs / Tape & Reel Marking Code A6 Maximum Ratings (.

📥 Download Datasheet

📁 Similar Datasheet

  • BAS16L - High-speed switching diode (nexperia)
  • BAS16L - High-speed switching diodes (NXP)
  • BAS16L - Switching Diode (ON Semiconductor)
  • BAS16L - High-speed diode (Philips)
  • BAS16L-Q - High-speed switching diode (nexperia)
  • BAS16LD - Single high-speed switching diode (NXP)
  • BAS16LD - Single high-speed switching diode (nexperia)
  • BAS16LP - SURFACE MOUNT SWITCHING DIODE (Diodes Incorporated)
  • BAS16LT1 - CASE 31808/ STYLE 8 SOT23 (TO236AB) (Motorola Inc)
  • BAS16LT1 - Switching Diode (Leshan Radio Company)
Other Datasheets by GME
  • BAS16H - Surface Mount Switching Diodes
  • BAS16M - Surface mount switching diode
  • BAS16T - Surface Mount Fast Switching Diode
  • BAS16TW - Surface Mount Fast Switching Diodes
  • BAS16X - High speed Switching Diode
  • BAS116WS - Surface mount switching diode
  • BAS19 - Surface mount switching diode
  • BAS19W - Surface Mount Switching Diode

Full PDF Text Transcription

Click to expand full text
Features  Repetitive peak forward current  High switching speed  Continuous reverse voltage  Repetitive peak reverse voltage Switching Diode BAS16L Mechanical Data  Case: DFN1006-2  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DFN1006-2 Ordering Information Part Number BAS16L Package DFN1006-2 Shipping Quantity 10000 pcs / Tape & Reel Marking Code A6 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Peak Forward Surge Current, 1μs Single Half-sine-wave Peak Forward Surge Current, 1ms Single
