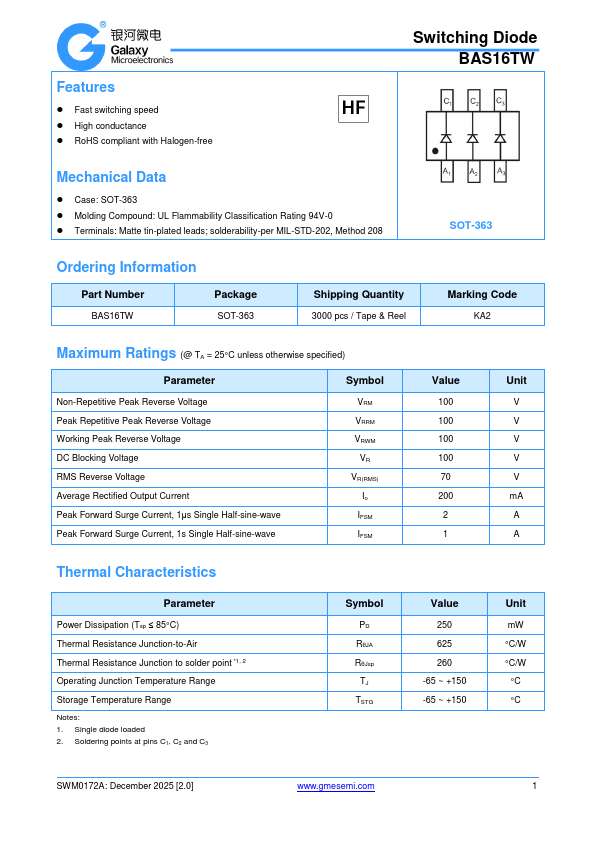

BAS16TW - Surface Mount Fast Switching Diodes

Key Features

  • Fast switching speed.
  • For general purpose switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAS16TW SURFACE MOUNT FAST SWITCHING DIODE ARRAY Diodes Incorporated
BAS16TW SURFACE MOUNT FAST SWITCHING DIODE WON-TOP
BAS16TW Surface Mount Switching Diode Array SeCoS
BAS16TW SWITCHING DIODE JCET
BAS16TW 200mW Switching Diode MCC

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAS16T Surface Mount Fast Switching Diode
BAS16H Surface Mount Switching Diodes
BAS16L Switching Diode
BAS16M Surface mount switching diode
BAS16X High speed Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Production specification Surface Mount Fast Switching Diodes MMBD4148TW/BAS16TW FEATURES  Fast switching speed.  For general purpose switching application.  Ultra-small surface mount package.  High conductance.  MSL 1 APPLICATIONS  For general purpose switching application. Pb Lead-free SOT-363 ORDERING INFORMATION Type No. Marking MMBD4148TW BAS16TW KA2 KA2 Package Code SOT-363 SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Characteristic Value VRM VRRM VRWM VR VR(RMS) Non-repetitive peak reverse Voltage Peak repetitive reverse Voltage Working peak reverse voltage DC reverse voltage RMS Reverse Voltage 100 75 53 IO Average rectified output current 150 Non-Repetitive peak forward surge current IFSM @t=1.0μs 2.0 @t=1.0s 1.
