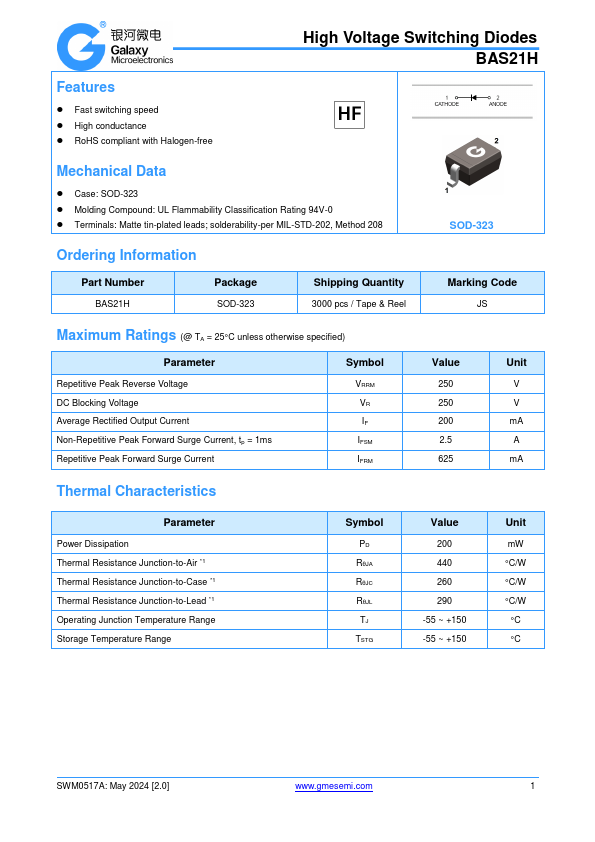

BAS21H
BAS21H is High Voltage Switching Diodes manufactured by Galaxy Microelectronics.
Features
- Fast switching speed
- High conductance
- Ro HS pliant with Halogen-free
High Voltage Switching Diodes BAS21H
Mechanical Data
- Case: SOD-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOD-323
Ordering Information
Part Number
Package
SOD-323
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Repetitive Peak Reverse Voltage DC Blocking Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current, tp = 1ms Repetitive Peak Forward Surge Current
Symbol
VRRM VR IF IFSM IFRM
Value
250 250 200 2.5 625
Unit
V V m A A m A
Thermal Characteristics
Parameter
Power Dissipation Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Case
- 1 Thermal Resistance Junction-to-Lead
- 1 Operating Junction Temperature Range Storage Temperature Range
Symbol
PD RθJA RθJC RθJL TJ TSTG
Value
200 440 260 290 -55 ~ +150 -55 ~ +150
Unit m W °C/W °C/W °C/W
°C °C

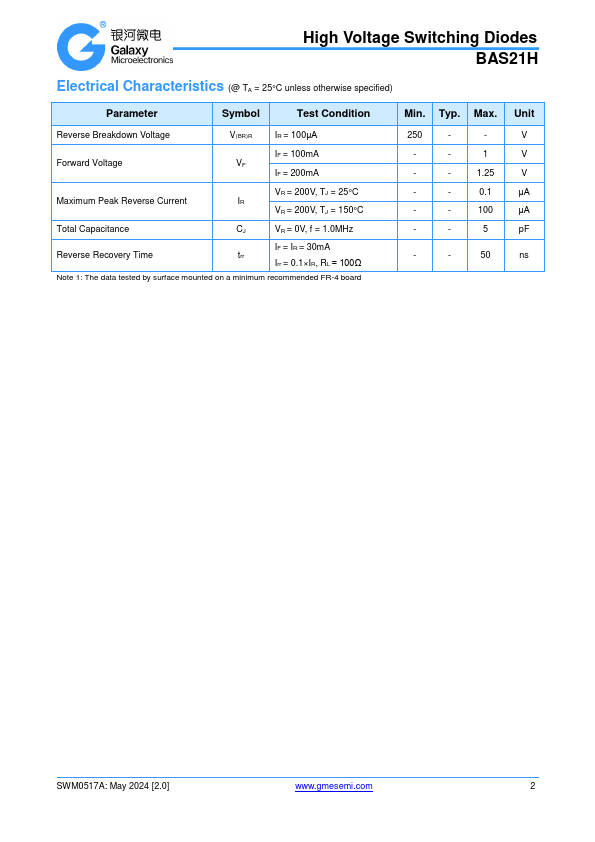

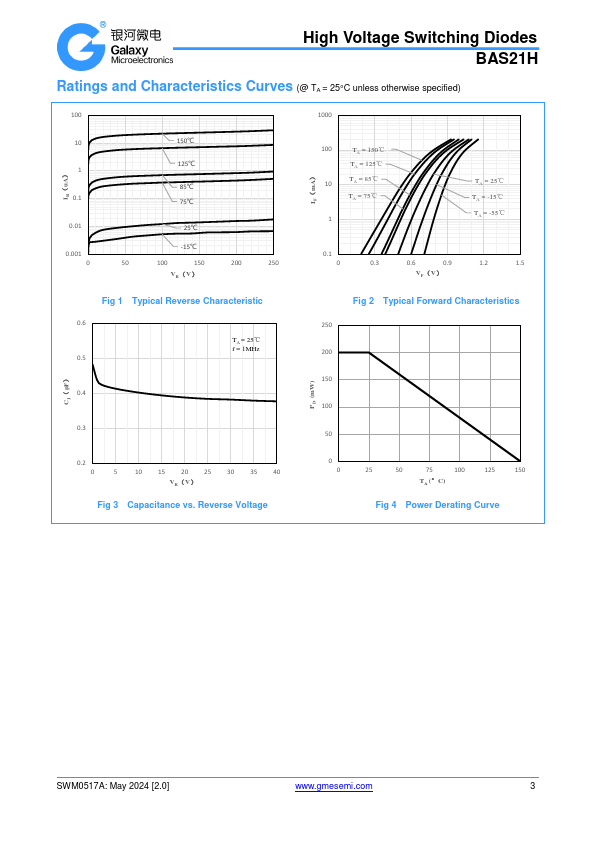

SWM0517A: May 2024...
