BAS28 - High-speed double diode

Datasheet Summary

Features

  • Continuous reverse voltage:max.75V Pb.
  • High switching speed:4ns. Lead-free.
  • Repetitive peak forward current:max.500mA BAS28.

📥 Download Datasheet

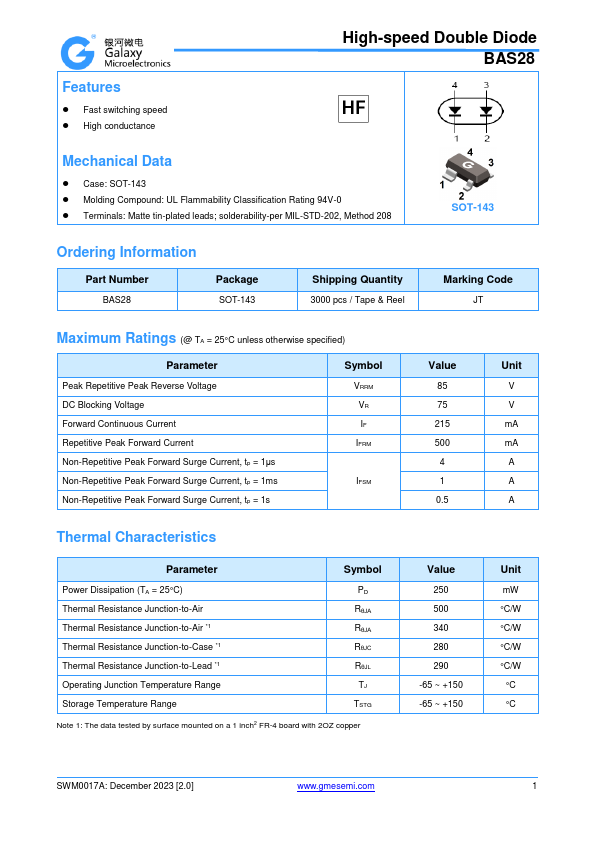

Datasheet preview – BAS28

Datasheet Details

Part number BAS28
Manufacturer GME
File Size 213.33 KB
Description High-speed double diode
Datasheet download datasheet BAS28 Datasheet

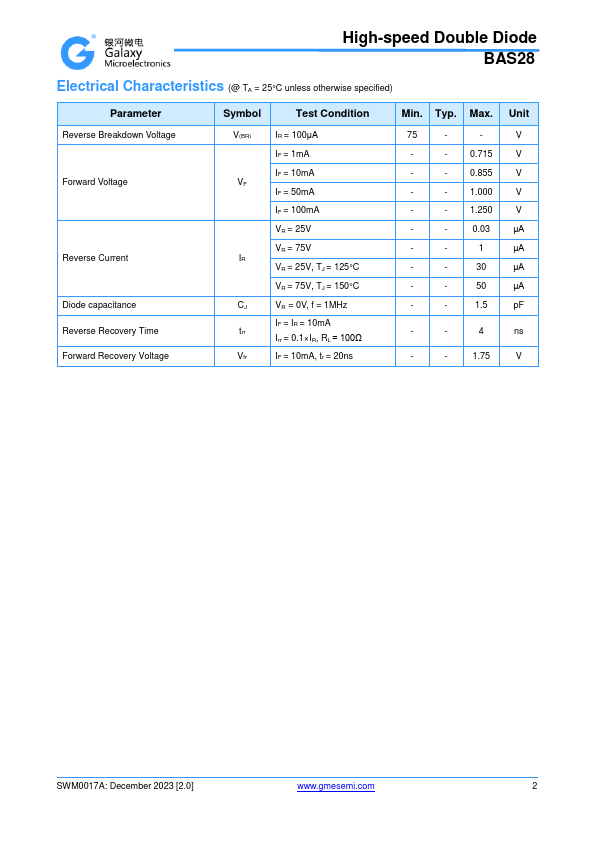

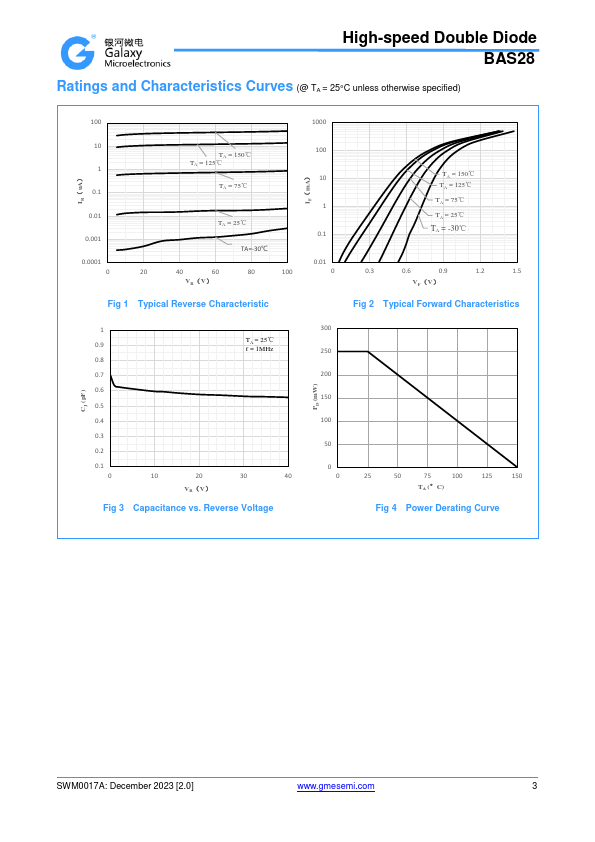

Additional preview pages of the BAS28 datasheet.

📁 Similar Datasheet

  • BAS28 - High-speed double diode (NXP)
  • BAS28 - Silicon Switching Diode (Siemens Semiconductor Group)
  • BAS28 - DUAL/ ISOLATED HIGH SPEED SWITCHING DIODE (Central Semiconductor Corp)
  • BAS28 - Silicon Switching Diode (Infineon)
  • BAS28 - DUAL SURFACE MOUNT FAST SWITCHING DIODE (Diodes)
  • BAS28 - High-Speed Double Diode (Kexin)
  • BAS28 - Surface mount switching diode (Galaxy Electrical)
  • BAS28 - High-Speed Double Diode (MCC)
  • BAS281 - Small Signal Schottky Diodes (Vishay Telefunken)
  • BAS282 - Small Signal Schottky Diodes (Vishay Telefunken)
Other Datasheets by GME
  • BAS20 - Surface mount switching diode
  • BAS20H - High Voltage Switching Diodes
  • BAS20W - Surface Mount Switching Diode
  • BAS21 - Surface mount switching diode
  • BAS21A - Surface mount switching diode
  • BAS21C - Surface mount switching diode
  • BAS21H - High Voltage Switching Diodes
  • BAS21S - Surface mount switching diode

Full PDF Text Transcription

Click to expand full text
Production specification High-speed double diode FEATURES  Continuous reverse voltage:max.75V Pb  High switching speed:4ns. Lead-free  Repetitive peak forward current:max.500mA BAS28 APPLICATIONS  High speed switching application. ORDERING INFORMATION Type No. Marking BAS28 JT 3 42 1 SOT-143 Package Code SOT-143 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Limits Repetitive Peak Reverse Voltage VRRM 85 Continuous Reverse Voltage Continuous forward current VR 75 IF 215 Repetitive peak forward current Surge current t=1μs t=1ms t=1s Power Dissipation(Note1) IFRM IFSM Pd 500 4 1 0.5 250 Thermal resistance from junction to ambient RθJA 500 Operating Junction Temperature Range Tj 150 Storage Temperature Range TSTG Note:1.
