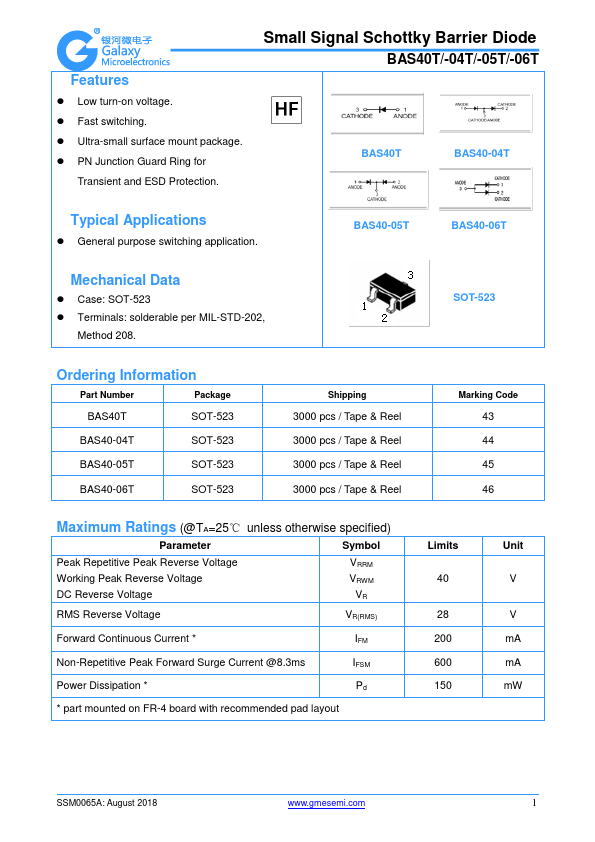

BAS40-04T
Features
- Low turn-on voltage.
- Fast switching.
- Ultra-small surface mount package.
- PN Junction Guard Ring for
Transient and ESD Protection.
Small Signal Schottky Barrier Diode
BAS40T/-04T/-05T/-06T
BAS40T
Typical Applications
- General purpose switching application.
BAS40-05T
BAS40-06T
Mechanical Data
- Case: SOT-523
- Terminals: solderable per MIL-STD-202,
Method 208.
SOT-523
Ordering Information
Part Number
Package
BAS40T
SOT-523
SOT-523
BAS40-05T
SOT-523
BAS40-06T
SOT-523
Shipping
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
43 44 45 46
Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbol
Limits
Unit
Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage
VRRM...
