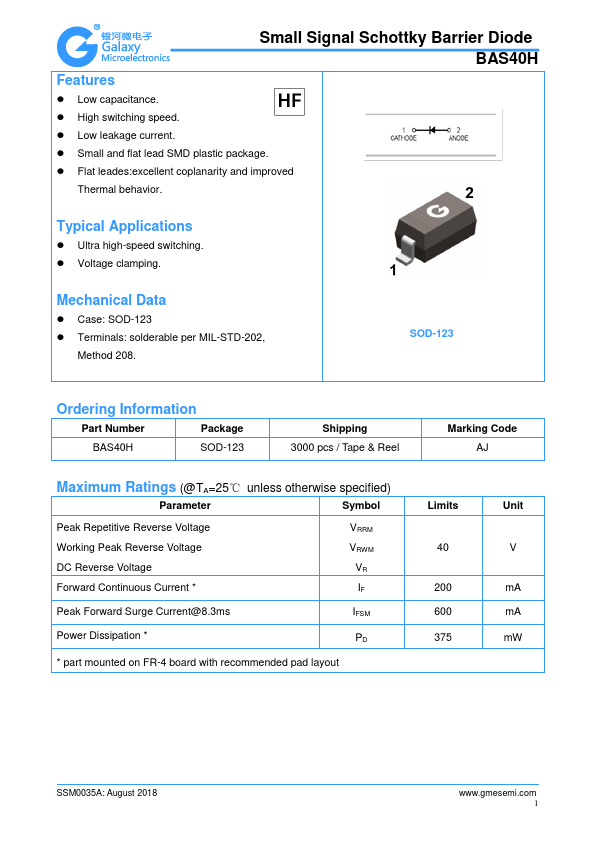

BAS40H
Features
- Low capacitance.
- High switching speed.
- Low leakage current.
- Small and flat lead SMD plastic package.
- Flat leades:excellent coplanarity and improved
Thermal behavior.
Typical Applications
- Ultra high-speed switching.
- Voltage clamping.
Mechanical Data
- Case: SOD-123
- Terminals: solderable per MIL-STD-202,
Method 208.
SOD-123
Ordering Information
Part Number
Package
SOD-123
Shipping 3000 pcs / Tape & Reel
Marking Code AJ
Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbol
Limits
Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage Forward Continuous Current
- VRRM VRWM
VR IF
200 m A
Peak Forward Surge Current@8.3ms
IFSM
600 m A
Power Dissipation
- PD
375 m W
- part mounted on FR-4 board with remended pad layout
SSM0035A: August 2018
