BAS516 - High Speed Switching Diode

Key Features

  • Ultra small plastic SMD package.
  • High switching speed: max.4ns. Pb Lead-free.
  • Continuous reverse voltage: max.75V.
  • Repetitive peak reverse voltage: max.85V.
  • Repetitive peak forward current: max.500mA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAS516 High-speed switching diodes NXP
BAS516 Switching Diode Toshiba
BAS516 High-speed switching diode nexperia
BAS516 SURFACE MOUNT FAST SWITCHING DIODE LITE-ON
BAS516 Small Signal Switching Diode SeCoS

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAS116WS Surface mount switching diode
BAS16H Surface Mount Switching Diodes
BAS16L Switching Diode
BAS16M Surface mount switching diode
BAS16T Surface Mount Fast Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

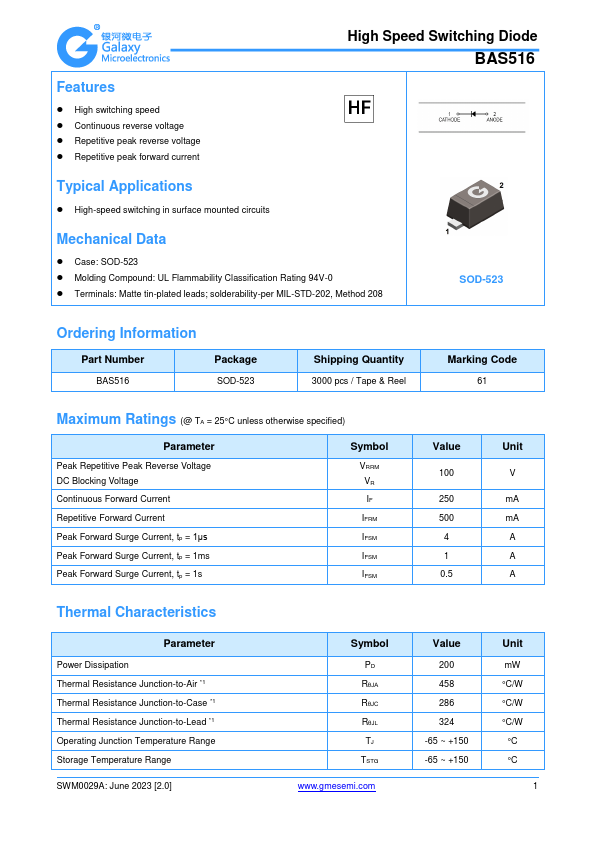

Production specification High Speed Switching Diode FEATURES  Ultra small plastic SMD package.  High switching speed: max.4ns. Pb Lead-free  Continuous reverse voltage: max.75V.  Repetitive peak reverse voltage: max.85V  Repetitive peak forward current: max.500mA APPLICATIONS  High-speed switching in surface mounted circuits. ORDERING INFORMATION Type No. Marking BAS516 61 BAS516 SOD-523 Package Code SOD-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Repetitive peak reverse voltage Continuous reverse voltage Continuous forward current Repetitive forward current Non-repetitive peak forward surge current t=1μs t=1ms t=1s VRRM VR IF IFRM IFSM 100 100 250 500 4 1 0.
