Galaxy Century Microelectronics BAT46WS
Small Signal Schottky Barrier Diode
| Part No. | BAT46WS |
|---|---|
| Datasheet | BAT46WS Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Small Signal Schottky Barrier Diode |
| Buy | Stock & Price |

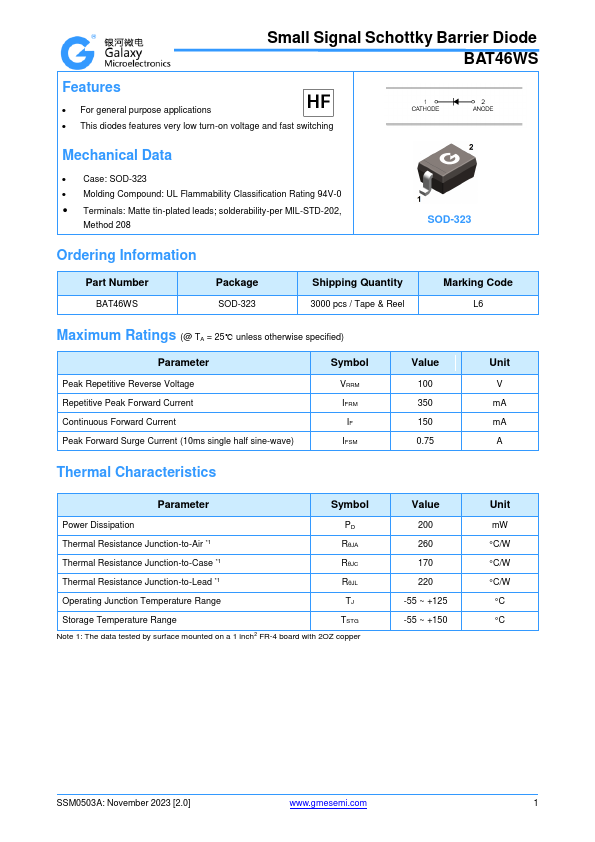

FEATURES
● For general purpose applications● This diodes features very low turn-on voltage and fast switching
MECHANICAL DATA
● Case: SOD-323● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number BAT46WS Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code L6
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter Peak Repetitive Reverse Voltage Repetitive Peak Forward Current Continuous Forward Current Peak Forward Surge Current (10ms single half sine-wave) Symbol VRRM IFRM IF IFSM Value 100 350 150 0.75 Unit V mA mA A Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating Junction Temperature Range TJ Storage Temperature Range TSTG Note 1: The data tested by surface mounted on a 1 in...
