BAT54 - Surface Mount Schottky Barrier diode

Features

  • Fast switching.
  • Low Turn-on voltage. Pb Lead-free.
  • PN Junction Guard Ring for Transient and ESD Protection.
  • Avaiable in Lead Free Version.
  • MSL 1 BAT54 BAT54 BAT54C Production specification BAT54/A/C/S BAT54A BAT54A BAT54S.

📥 Download Datasheet

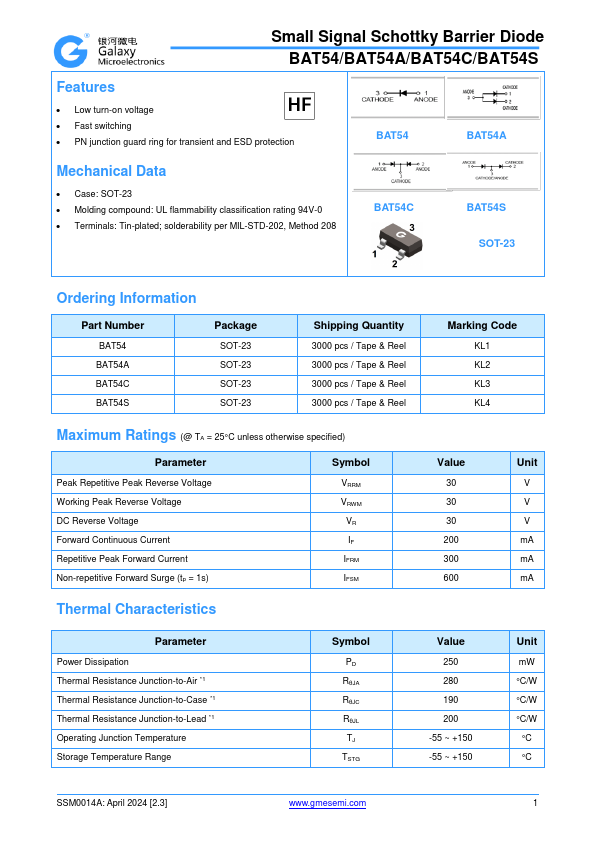

Datasheet preview – BAT54

Datasheet Details

Part number BAT54
Manufacturer Galaxy Microelectronics
File Size 213.33 KB
Description Surface Mount Schottky Barrier diode
Datasheet download datasheet BAT54 Datasheet

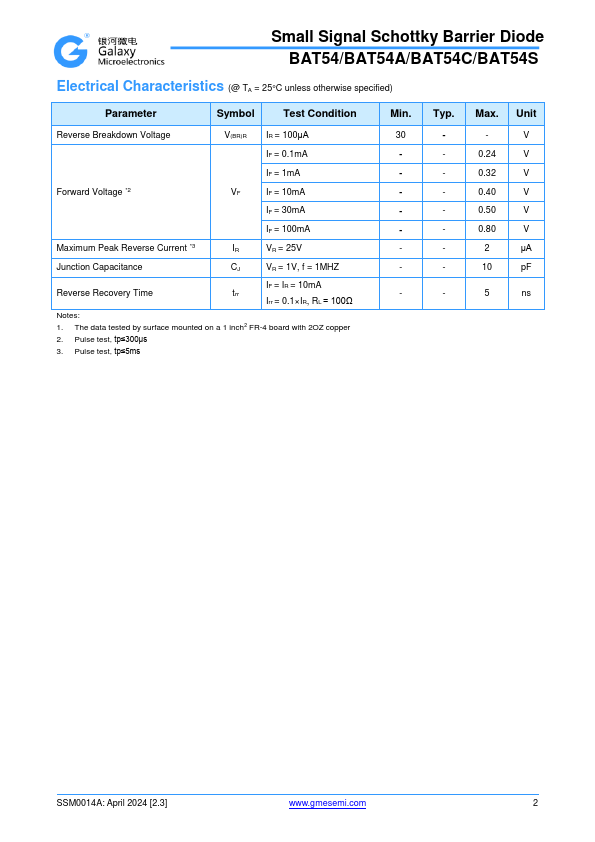

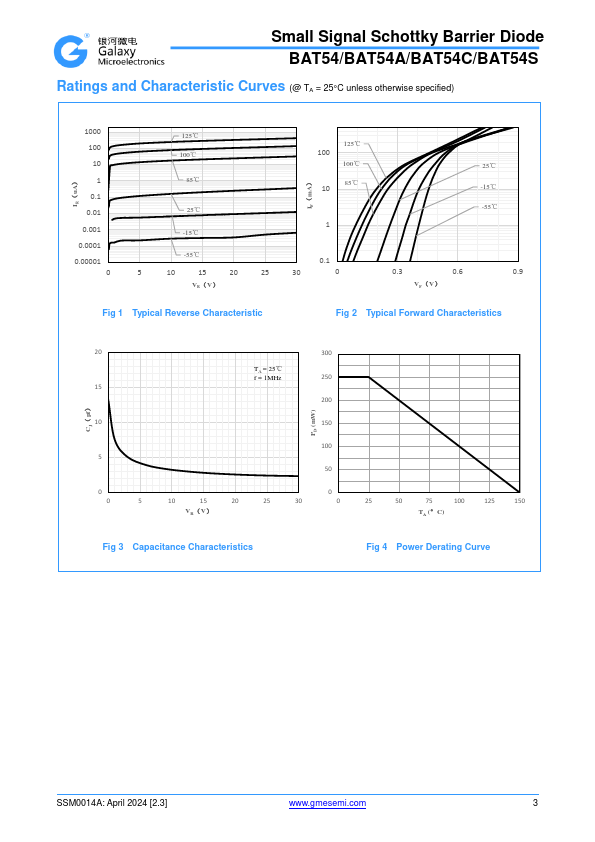

Additional preview pages of the BAT54 datasheet.

📁 Similar Datasheet

  • BAT54 - Multiple Terminals SMD Schottky Diodes (TAITRON)
  • BAT54 - SMD Small Signal Schottky Diodes (Diotec)
  • BAT54 - Small signal Schottky diodes (STMicroelectronics)
  • BAT54 - Schottky barrier diodes (nexperia)
  • BAT54 - Schottky barrier diodes (NXP)
  • BAT54 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • BAT54 - Small Signal Schottky Diodes (Vishay)
  • BAT54 - Silicon Schottky Diodes (Infineon)
  • BAT54 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • BAT54 - 200mA Surface Mount Small Signal Diodes (CITC)
Other Datasheets by GME
  • BAT54A - Surface Mount Schottky Barrier diode
  • BAT54AT - Surface Mount Schottky Barrier Diode
  • BAT54C - Surface Mount Schottky Barrier diode
  • BAT54CT - Surface Mount Schottky Barrier Diode
  • BAT54H - Schottky Barrier Diode
  • BAT54J - Schottky Barrier Diode
  • BAT54L - Schottky Barrier Diode
  • BAT54S - Surface Mount Schottky Barrier diode

Full PDF Text Transcription

Click to expand full text
Surface Mount Schottky Barrier diode FEATURES  Fast switching .  Low Turn-on voltage. Pb Lead-free  PN Junction Guard Ring for Transient and ESD Protection.  Avaiable in Lead Free Version.  MSL 1 BAT54 BAT54 BAT54C Production specification BAT54/A/C/S BAT54A BAT54A BAT54S ORDERING INFORMATION Type No. Marking BAT54 BAT54A BAT54C BAT54S KL1 KL2 KL3 KL4 SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Peak Repetitive Peak reverse voltage Working Peak Reverse Voltage DC Reverse Voltage VRRM VRWM VR Forward Continuous Current IF Repetitive Peak Forward Current @tp<1.
