BAT54T - Surface Mount Schottky Barrier Diode

Features

  • Fast switching.
  • Low forward voltage drop.
  • Ultra-small surface mount package.

📥 Download Datasheet

Datasheet preview – BAT54T

Datasheet Details

Part number BAT54T
Manufacturer GME
File Size 304.19 KB
Description Surface Mount Schottky Barrier Diode
Datasheet download datasheet BAT54T Datasheet

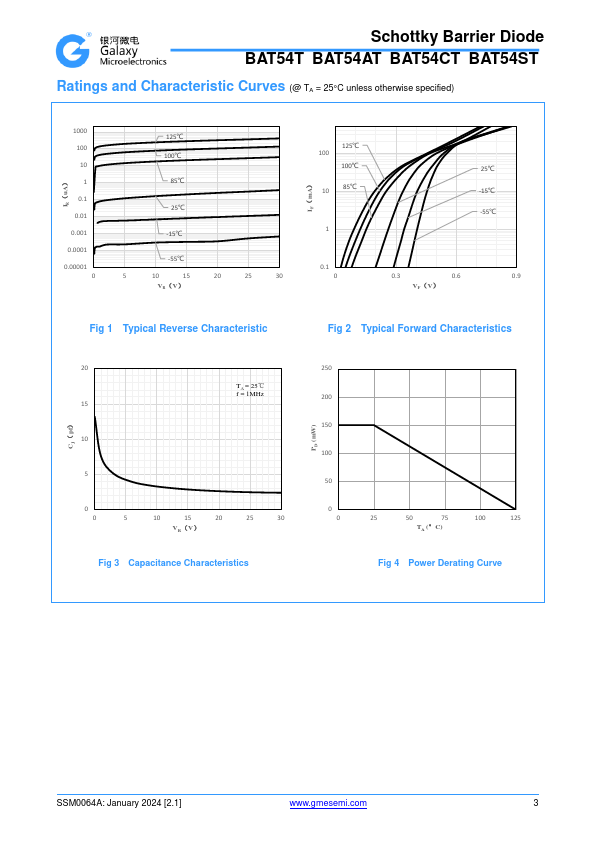

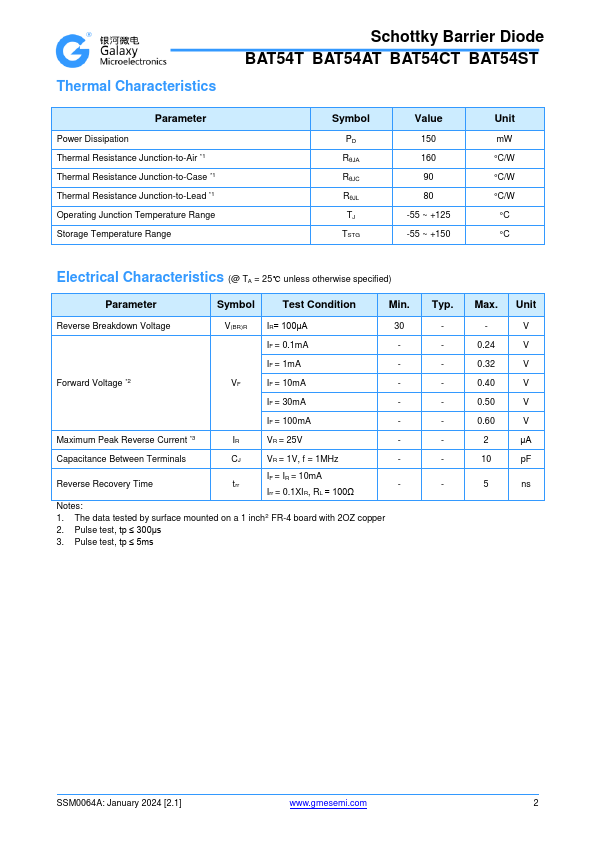

Additional preview pages of the BAT54T datasheet.

📁 Similar Datasheet

  • BAT54T - Surface Mount Schottky Diodes (WEITRON)
  • BAT54T - SWITCHING DIODE (Jin Yu Semiconductor)
  • BAT54T - SCHOTTKY BARRIER DIODE (JCET)
  • BAT54T - SCHOTTKY BARRIER DIODE (Sangdest Microelectronics)
  • BAT54T - SCHOTTKY BARRIER DIODE (Rectron)
  • BAT54T - Single Schottky barrier diode (NXP)
  • BAT54T - Surface Mount Schottky Barrier Diode (Bruckewell)
  • BAT54T - 200mW Surface Mount Schottky Barrier Diode (Taiwan Semiconductor)
  • BAT54T - Surface Mount Schottky Barrier Diodes (LGE)
  • BAT54T - Schottky Barrier Diode (MCC)
Other Datasheets by GME
  • BAT54 - Surface Mount Schottky Barrier diode
  • BAT54A - Surface Mount Schottky Barrier diode
  • BAT54AT - Surface Mount Schottky Barrier Diode
  • BAT54C - Surface Mount Schottky Barrier diode
  • BAT54CT - Surface Mount Schottky Barrier Diode
  • BAT54H - Schottky Barrier Diode
  • BAT54J - Schottky Barrier Diode
  • BAT54L - Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

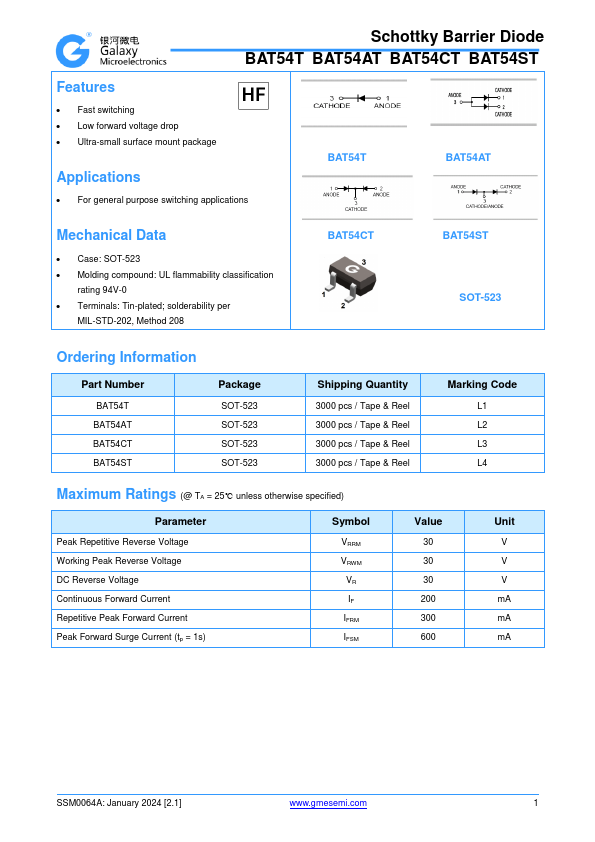

Schottky Barrier Diode BAT54T BAT54AT BAT54CT BAT54ST Features  Fast switching  Low forward voltage drop  Ultra-small surface mount package Applications  For general purpose switching applications BAT54T BAT54AT Mechanical Data  Case: SOT-523  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 BAT54CT BAT54ST SOT-523 Ordering Information Part Number BAT54T BAT54AT BAT54CT BAT54ST Package SOT-523 SOT-523 SOT-523 SOT-523 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code L1 L2 L3 L4 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage
