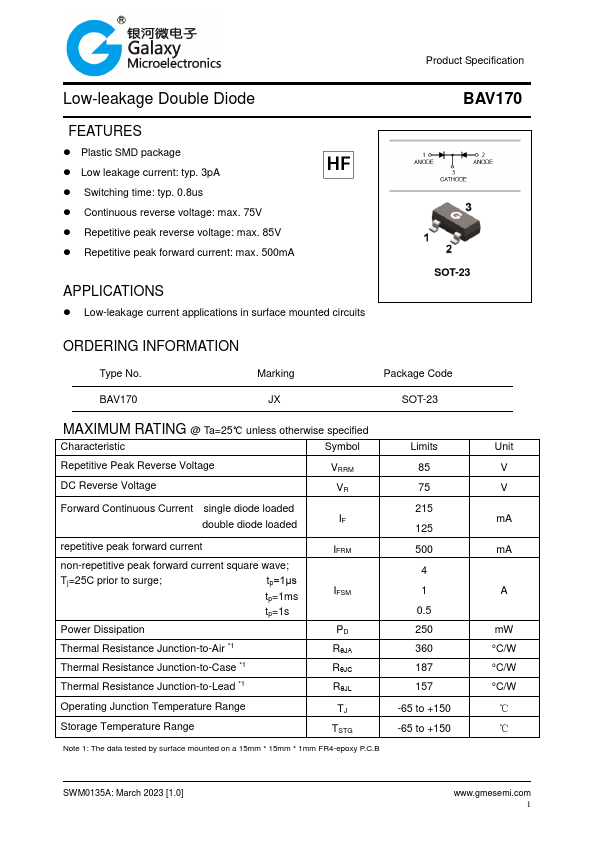

BAV170
FEATURES
- Plastic SMD package
- Low leakage current: typ. 3p A
- Switching time: typ. 0.8us
- Continuous reverse voltage: max. 75V
- Repetitive peak reverse voltage: max. 85V
- Repetitive peak forward current: max. 500m A
APPLICATIONS
- Low-leakage current applications in surface mounted circuits
SOT-23
ORDERING INFORMATION
Type No.
Marking
Package Code SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic
Symbol
Repetitive Peak Reverse Voltage
VRRM
DC Reverse Voltage
Forward Continuous Current single diode loaded double diode loaded
IF repetitive peak forward current
IFRM non-repetitive peak forward current square wave;
Tj=25C prior to surge; tp=1μs tp=1ms
IFSM tp=1s
Power Dissipation
Thermal Resistance Junction-to-Air
- 1
RθJA
Thermal Resistance Junction-to-Case
- 1
RθJC
Thermal Resistance Junction-to-Lead
- 1
RθJL
Operating Junction Temperature Range Storage Temperature Range
TJ TSTG
Note 1: The data tested by...
