Galaxy Century Microelectronics BAW567DW
Surface Mount Fast Switching Diodes
| Part No. | BAW567DW |
|---|---|
| Datasheet | BAW567DW Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Surface Mount Fast Switching Diodes |
| Buy | Stock & Price |

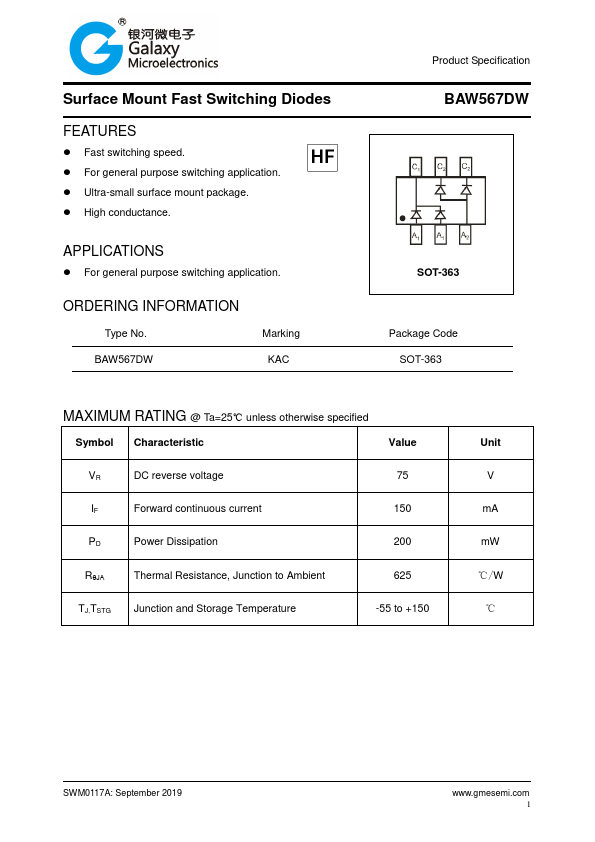

FEATURES
● Fast switching speed.● For general purpose switching application.
● Ultra-small surface mount package.
● High conductance.
APPLICATIONS

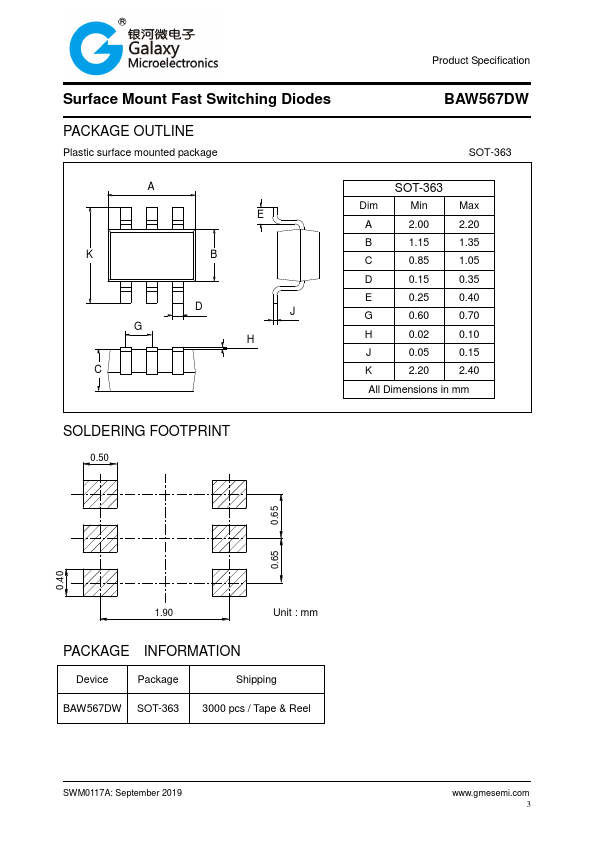

● For general purpose switching application. ORDERING INFORMATION Type No. BAW567DW Marking KAC Product Specification BAW567DW SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Characteristic Value VR DC reverse voltage 75 IF Forward continuous current 150 PD Power Dissipation 200 RθJA Thermal Resistance, Junction to Ambient 625 TJ,TSTG Junction and Storage Temperature -55 to +150 Unit V mA mW ℃/W ℃ SWM0117A: September 2019 1 Product Specification Surface Mount Fast Switching Diodes BAW567DWELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Parameter Symbol Test conditions MIN MAX UNIT Reverse breakdown voltage V(BR)R IR=2.5μA 75 IF=1.0mA Forward voltage VF IF=10mA IF=50mA - IF=150mA Reverse voltage leakage current IR VR=75V VR=20V Junction Capacitance CJ VR=0V,f=1.0MHz - Reverse Recovery ti...
