BAW56W - Surface mount switching diode

Galaxy Microelectronics

Key Features

z For high-speed switching.

BAW56W surface mount switching diode by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	BAW56W
Manufacturer	Galaxy Microelectronics
File Size	172.36 KB
Description	Surface mount switching diode
Datasheet	BAW56W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAW56W	SURFACE MOUNT SWITCHING DIODES	PANJIT
BAW56W	SWITCHING DIODE	Eris
BAW56W	Dual Switching Diodes	YS
BAW56W	SURFACE MOUNT FAST SWITCHING DIODE	LITE-ON
BAW56W	200mW SURFACE MOUNT SWITCHING DIODES	TIPTEK

Other Datasheets by Galaxy Microelectronics

Part Number	Description
BAW56	Surface mount switching diode
BAW567DW	Surface Mount Fast Switching Diodes
BAW56M	Surface mount switching diode
BAW56T	SURFACE MOUNT FAST SWITCHING DIODE
BAW70T	Surface Mount Fast Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

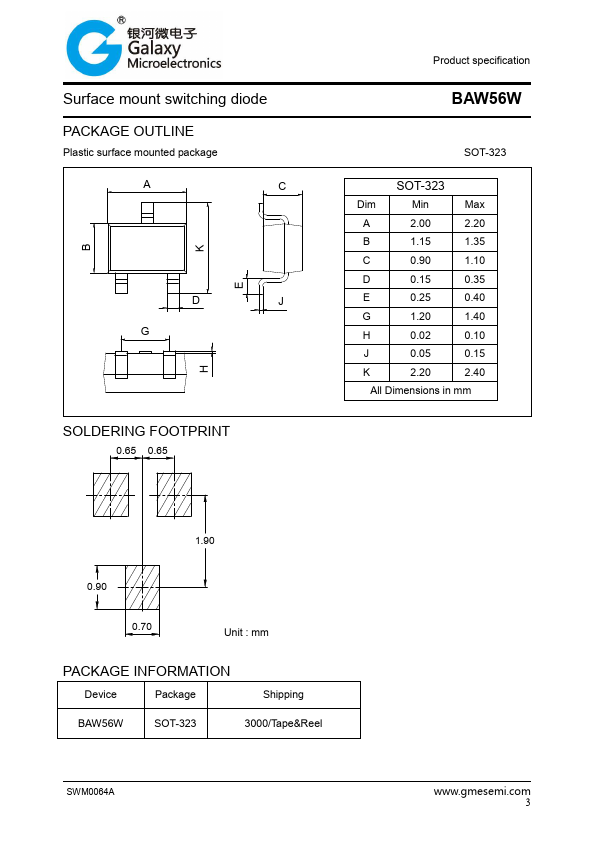

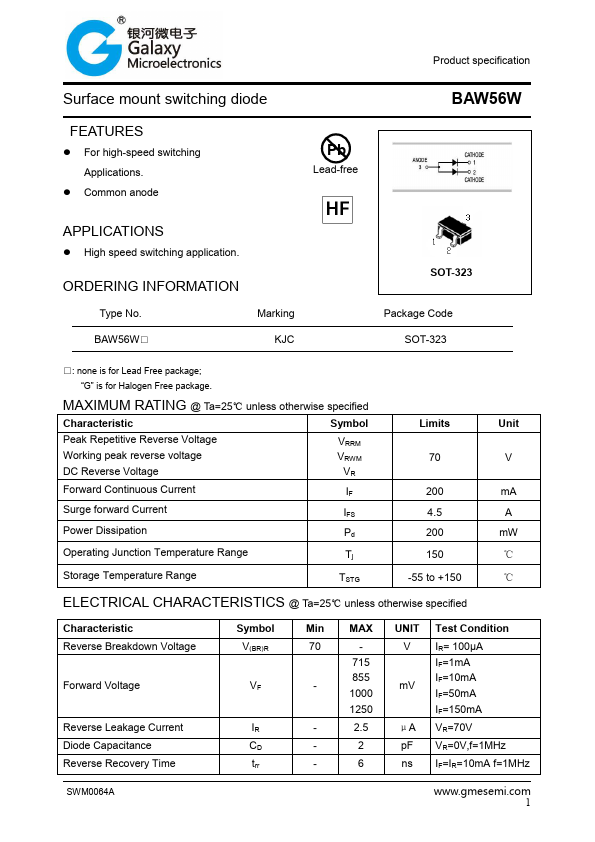

Production specification Surface mount switching diode FEATURES z For high-speed switching Applications. z Common anode Pb Lead-free BAW56W APPLICATIONS z High speed switching application. SOT-323 ORDERING INFORMATION Type No. Marking BAW56W KJC Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Peak Repetitive Reverse Voltage Working peak reverse voltage DC Reverse Voltage VRRM VRWM VR Forward Continuous Current IF Limits 70 200 Surge forward Current IFS 4.
