Galaxy Century Microelectronics BC846AS
Dual NPN Small Signal Surface Mount Transistor
| Part No. | BC846AS |
|---|---|
| Datasheet | BC846AS Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Dual NPN Small Signal Surface Mount Transistor |
| Buy | Stock & Price |

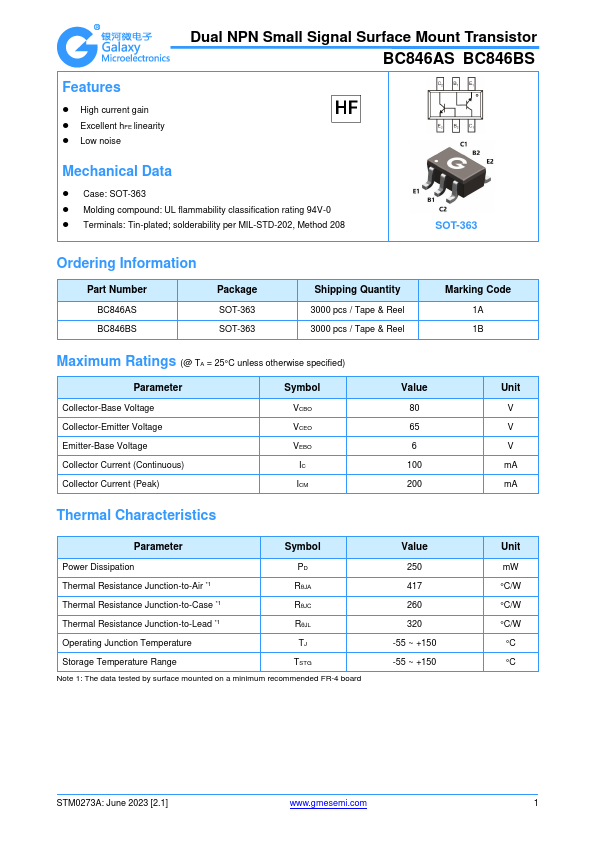

FEATURES
● High current gain● Excellent hFE linearity
● Low noise Dual NPN Small Signal Surface Mount Transistor BC846AS BC846BS
MECHANICAL DATA
● Case: SOT-363● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-363 Ordering Information Part Number BC846AS BC846BS Package SOT-363 SOT-363 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 1A 1B
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Peak) Symbol VCBO VCEO VEBO IC ICM Value 80 65 6 100 200 Unit V V V mA mA Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance Junction-to-Air *1 RθJA Thermal Resistance Junction-to-Case *1 RθJC Thermal Resistance Junction-to-Lead *1 RθJL Operating Junction Temperature TJ Storage Temperature Range TSTG Note 1: The data tested...
