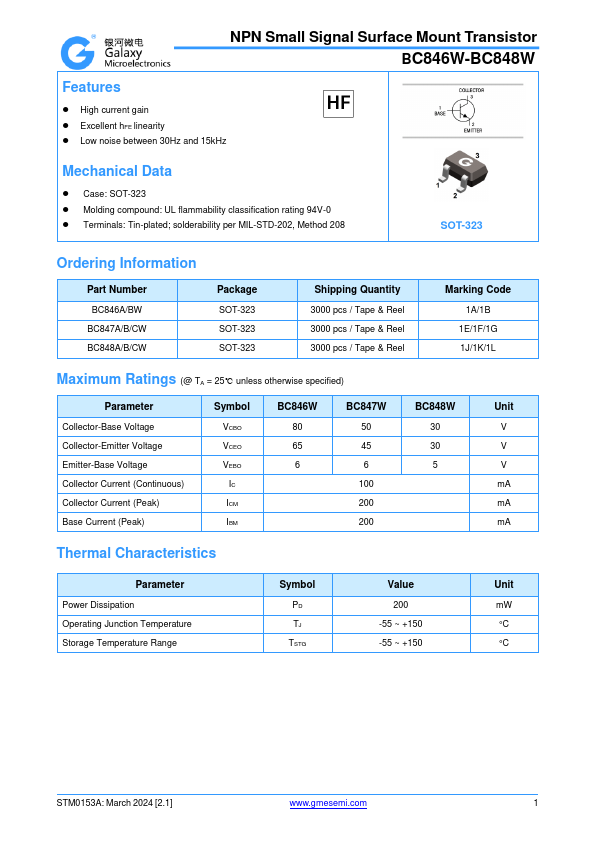

Galaxy Century Microelectronics BC847W
NPN Small Signal Surface Mount Transistor
| Part No. | BC847W |
|---|---|
| Datasheet | BC847W Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Small Signal Surface Mount Transistor |
| Buy | Stock & Price |
FEATURES
● High current gain● Excellent hFE linearity
● Low noise between 30Hz and 15kHz
MECHANICAL DATA
● Case: SOT-323● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-323 Ordering Information Part Number BC846A/BW BC847A/B/CW BC848A/B/CW Package SOT-323 SOT-323 SOT-323 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 1A/1B 1E/1F/1G 1J/1K/1L
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Peak) Base Current (Peak) Symbol VCBO VCEO VEBO IC ICM IBM BC846W 80 65 6 BC847W 50 45 6 100 200 200 BC848W 30 30 5 Unit V V V mA mA mA Thermal Characteristics Parameter Power Dissipation Operating Junction Temperature Storage Temperature Range Symbol PD TJ TSTG Value 200 -55 ~ +150 -55 ~ +150 Unit mW °C °C STM0153A: March 2024...
