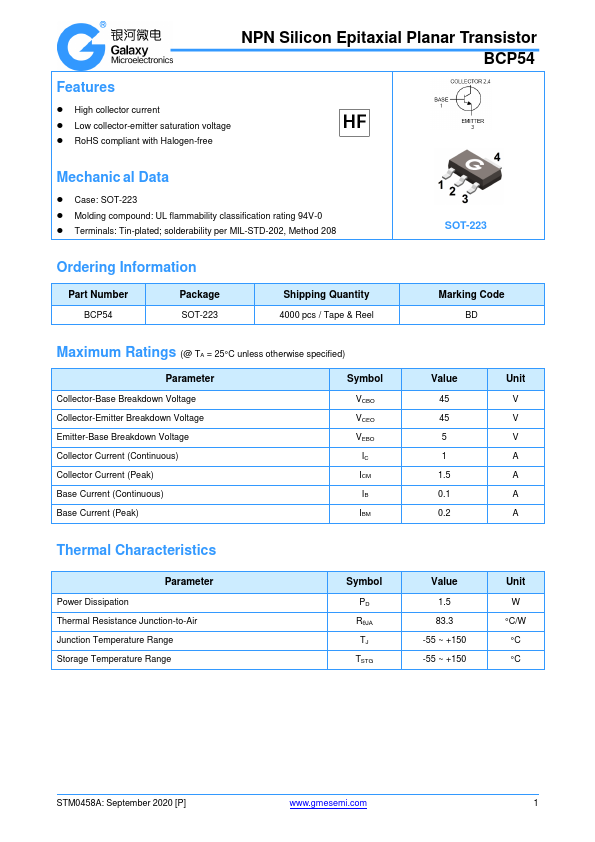

BCP54
Features
- High collector current
- Low collector-emitter saturation voltage
- Ro HS pliant with Halogen-free
Mechanic al Data
- Case: SOT-223
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-223
Ordering Information
Part Number BCP54
Package SOT-223
Shipping Quantity 4000 pcs / Tape & Reel
Marking Code BD
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Peak) Base Current (Continuous) Base Current (Peak)
Symbol VCBO VCEO VEBO IC ICM IB IBM
Value 45 45 5 1 1.5 0.1 0.2
Unit V V V A A A A
Thermal Characteristics
Parameter Power Dissipation Thermal Resistance Junction-to-Air Junction Temperature Range Storage Temperature Range
Symbol PD RθJA TJ TSTG
Value 1.5 83.3
-55 ~ +150 -55 ~ +150
Unit W
°C/W °C °C
