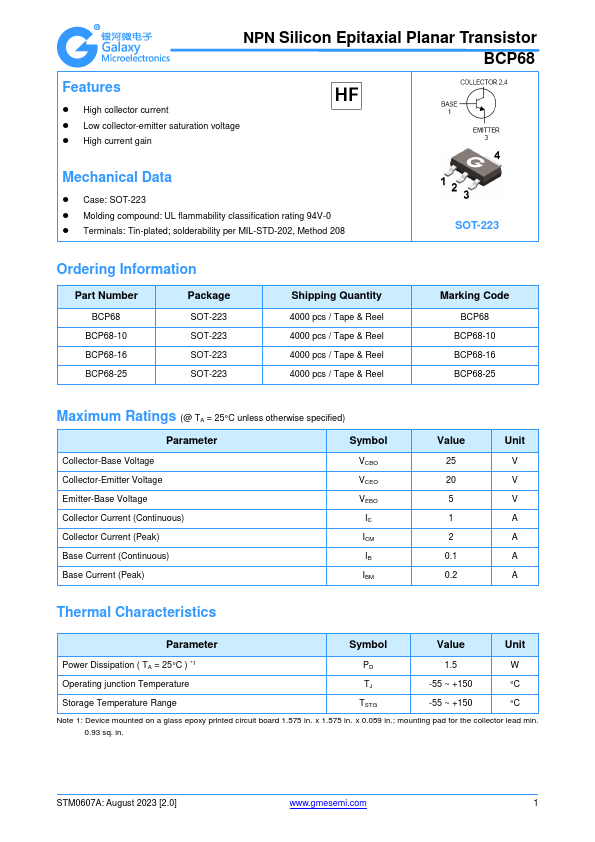

Galaxy Century Microelectronics BCP68
NPN Silicon Epitaxial Planar Transistor
| Part No. | BCP68 |
|---|---|
| Datasheet | BCP68 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
FEATURES
● High collector current● Low collector-emitter saturation voltage
● High current gain
MECHANICAL DATA
● Case: SOT-223● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-223 Ordering Information Part Number BCP68 BCP68-10 BCP68-16 BCP68-25 Package SOT-223 SOT-223 SOT-223 SOT-223 Shipping Quantity 4000 pcs / Tape & Reel 4000 pcs / Tape & Reel 4000 pcs / Tape & Reel 4000 pcs / Tape & Reel Marking Code BCP68 BCP68-10 BCP68-16 BCP68-25
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Symbol Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Peak) Base Current (Continuous) Base Current (Peak) VCBO VCEO VEBO IC ICM IB IBM Value 25 20 5 1 2 0.1 0.2 Unit V V V A A A A Thermal Characteristics Parameter Symbol Value Unit Power Dissipation ( TA = 25°C ) *1 PD 1.5 W Operating junction Temperature TJ -55 ~ +150 °C Storag...
