Galaxy Century Microelectronics BCW67C
PNP Silicon Epitaxial Planar Transistor
- Max Operating Temp : 150°C
- Min Operating Temp : -65°C
Source:
Octopart
| Part No. | BCW67C |
|---|---|
| Datasheet | BCW67C Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | PNP Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |

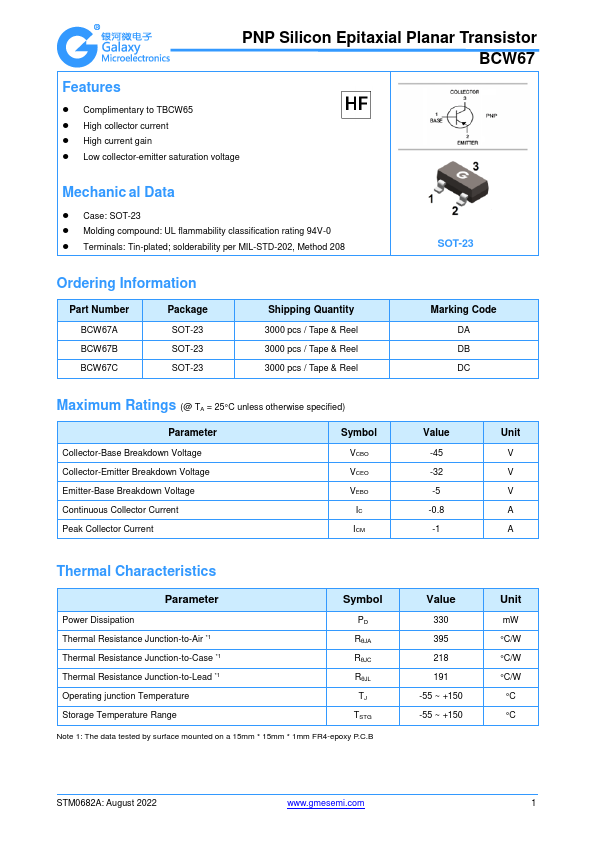

FEATURES
● Complimentary to TBCW65● High collector current
● High current gain
● Low collector-emitter saturation voltage Mechanic al Data
● Case: SOT-23
● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number BCW67A BCW67B BCW67C Package SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code DA DB DC
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current Symbol VCBO VCEO VEBO IC ICM Value -45 -32 -5 -0.8 -1 Unit V V V A A Thermal Characteristics Parameter Symbol Power Dissipation Thermal Resistance Junction-to-Air *1 Thermal Resistance Junction-to-Case *1 Thermal Resistance Junction-to-Lead *1 Operating junction Temperature Storage Temperature R...
