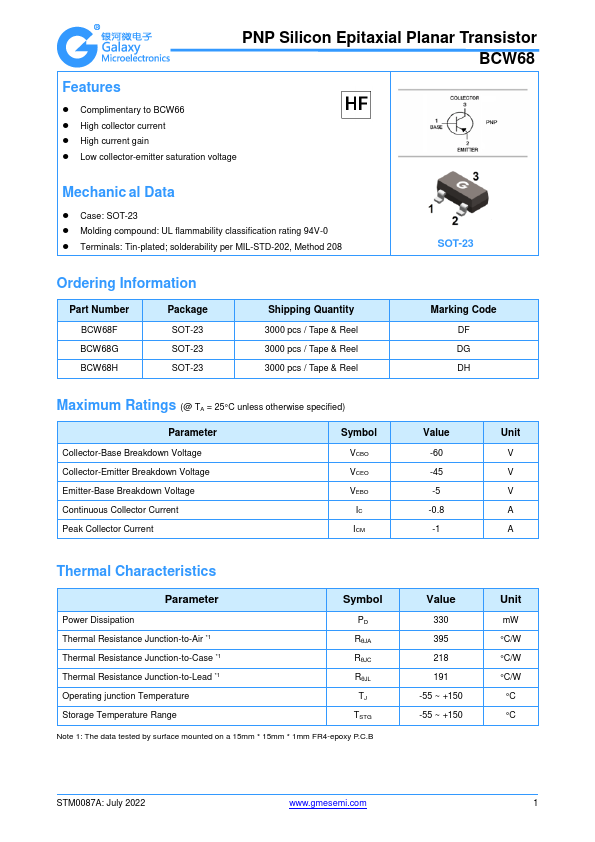

BCW68
Features
- plimentary to BCW66
- High collector current
- High current gain
- Low collector-emitter saturation voltage
Mechanic al Data
- Case: SOT-23
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number BCW68F BCW68G BCW68H
Package SOT-23 SOT-23 SOT-23
Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code DF DG DH
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current
Symbol VCBO VCEO VEBO IC ICM
Value -60 -45 -5 -0.8 -1
Unit V V V A A
Thermal Characteristics
Parameter
Symbol
Power Dissipation Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Case
- 1 Thermal Resistance Junction-to-Lead
- 1 Operating junction Temperature Storage...
