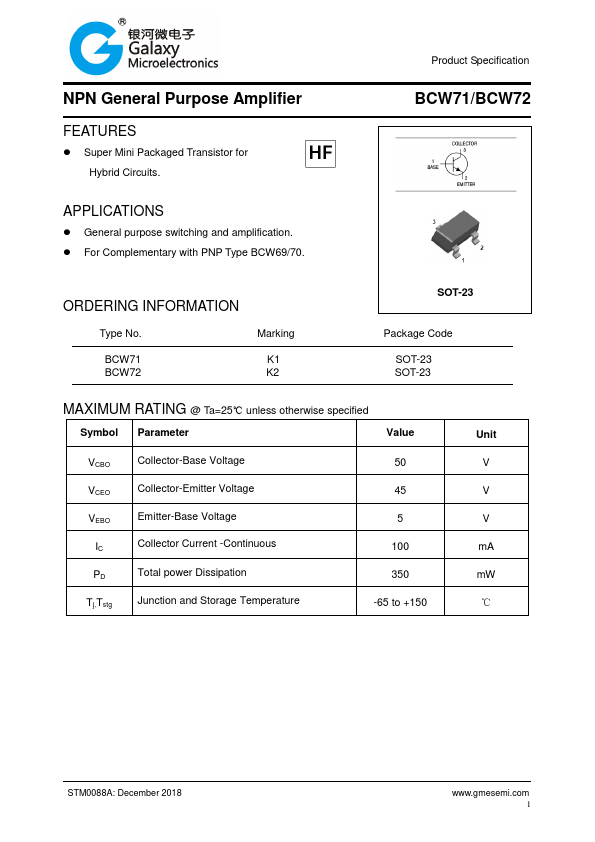

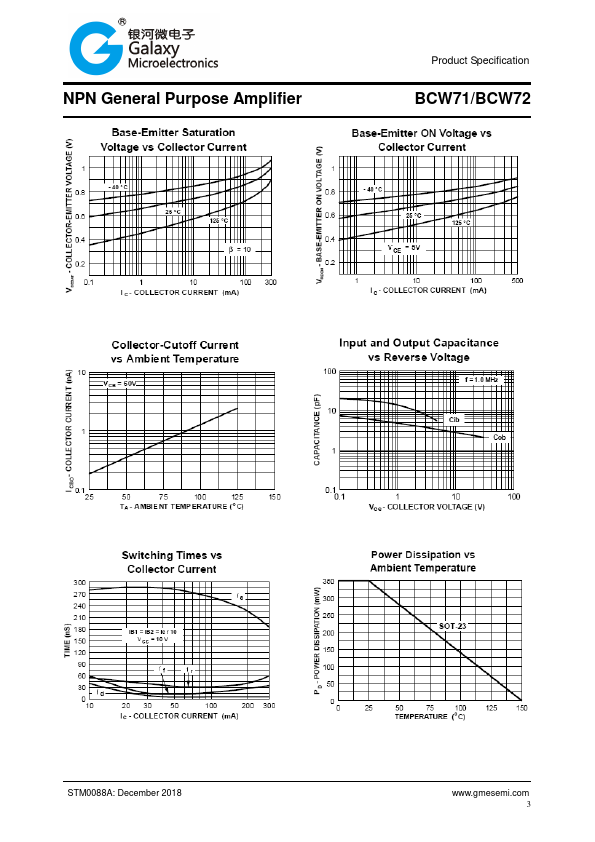

NPN General Purpose Amplifier
FEATURES
z Super Mini Packaged Transistor for Hybrid Circuits.
Pb
Lead-free
APPLICATIONS
z General purpose switching and amplification. z For Complementary with PNP Type BCW69/70.
Production specification
BCW71/BCW72
ORDERING INFORMATION
Type No.
Marking
BCW71 BCW72
K1 K2
SOT-23
Package Code SOT-23 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Value
VCBO VCEO VEBO IC PD Tj,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Total power Dissipation Junction and Storage Temperature
50 45 5 100 350 -65 to +150
Unit V V V mA mW ℃
C160 Rev.A
