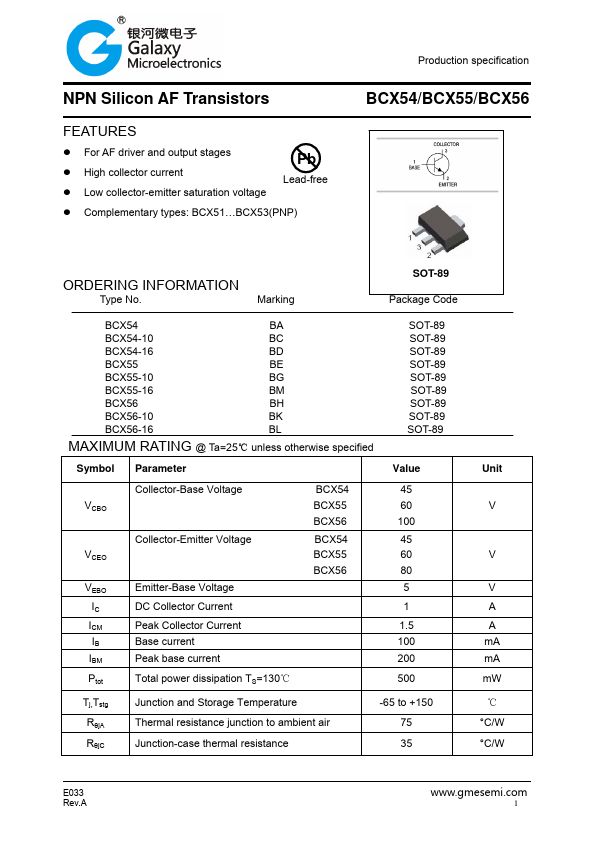

BCX56-16
FEATURES
- For AF driver and output stages
- High collector current
- Low collector-emitter saturation voltage
Pb
Lead-free
- plementary types: BCX51…BCX53(PNP)
Production specification
BCX54/BCX55/BCX56
ORDERING INFORMATION
Type No.
Marking
SOT-89 Package Code
BCX54
BCX54-10
BCX54-16
BCX55
BCX55-10
BCX55-16
BCX56
BCX56-10
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89
Symbol Parameter
Value
VCBO
Collector-Base Voltage
BCX54
BCX55
BCX56...
