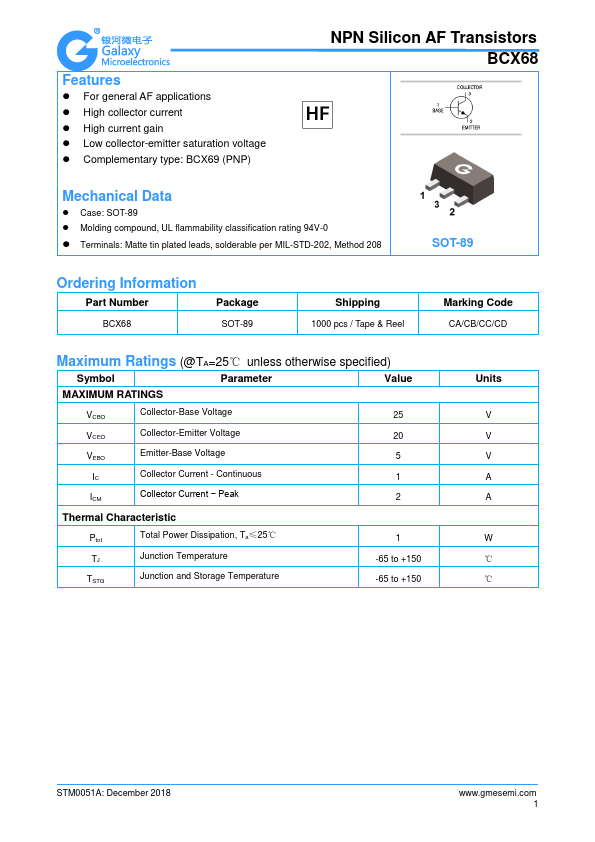

BCX68
Features
- For general AF applications
- High collector current
- High current gain
- Low collector-emitter saturation voltage
- plementary type: BCX69 (PNP)
NPN Silicon AF Transistors BCX68
Mechanical Data
- Case: SOT-89
- Molding pound, UL flammability classification rating 94V-0
- Terminals: Matte tin plated leads, solderable per MIL-STD-202, Method 208
SOT-89
Ordering Information
Part Number
Package
SOT-89
Shipping
1000 pcs / Tape & Reel
Marking Code
CA/CB/CC/CD
Maximum Ratings (@TA=25℃ unless otherwise specified)
Symbol
Parameter
Value
MAXIMUM RATINGS
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
Collector Current
- Continuous
Collector Current
-...
