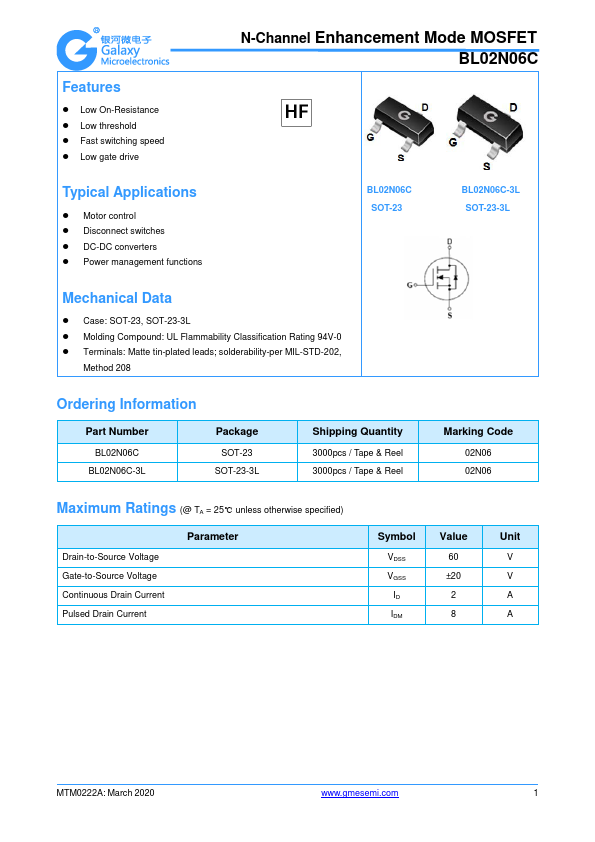

BL02N06C
Features
- Low On-Resistance
- Low threshold
- Fast switching speed
- Low gate drive
N-Channel Enhancement Mode MOSFET BL02N06C
Typical Applications
- Motor control
- Disconnect switches
- DC-DC converters
- Power management functions
BL02N06C SOT-23
BL02N06C-3L SOT-23-3L
Mechanical Data
- Case: SOT-23, SOT-23-3L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
Ordering Information
Part Number
BL02N06C BL02N06C-3L
Package
SOT-23 SOT-23-3L
Shipping Quantity
3000pcs / Tape & Reel 3000pcs / Tape & Reel
Marking Code
02N06 02N06
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current Pulsed Drain Current
Parameter
Symbol
VDSS VGSS
ID IDM
Value
60 ±20
2 8
Unit
MTM0222A: March...
