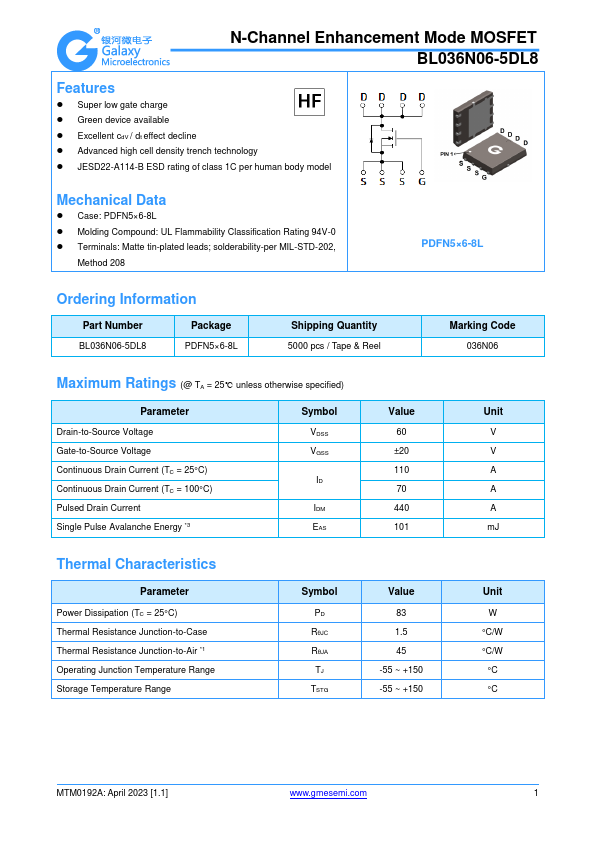

BL036N06-5DL8
Features
- Super low gate charge
- Green device available
- Excellent cd V / dt effect decline
- Advanced high cell density trench technology
- JESD22-A114-B ESD rating of class 1C per human body model
Mechanical Data
- Case: PDFN5×6-8L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
PDFN5×6-8L
Ordering Information
Part Number BL036N06-5DL8
Package PDFN5×6-8L
Shipping Quantity 5000 pcs / Tape & Reel
Marking Code 036N06
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Pulsed Drain Current Single Pulse Avalanche Energy
- 3
Symbol VDSS VGSS
IDM EAS
Value 60 ±20 110 70 440 101
Unit V V A A A m J
Thermal Characteristics
Parameter Power Dissipation (TC = 25°C) Thermal Resistance Junction-to-Case Thermal Resistance Junction-to-Air
- 1 Operating Junction...
