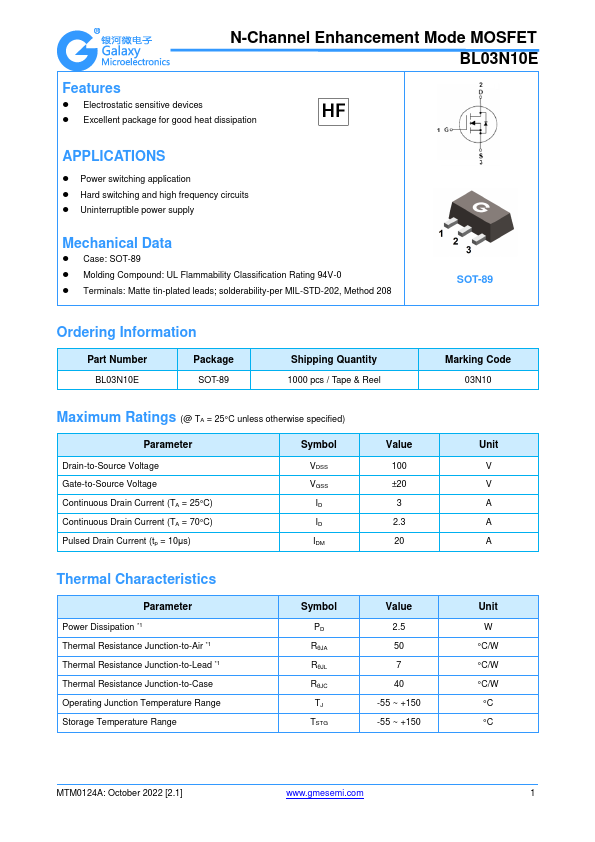

BL03N10E
Features
- Electrostatic sensitive devices
- Excellent package for good heat dissipation
APPLICATIONS
- Power switching application
- Hard switching and high frequency circuits
- Uninterruptible power supply
Mechanical Data
- Case: SOT-89
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-89
Ordering Information
Part Number BL03N10E
Package SOT-89
Shipping Quantity 1000 pcs / Tape & Reel
Marking Code 03N10
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C) Continuous Drain Current (TA = 70°C) Pulsed Drain Current (tp = 10μs)
Symbol VDSS VGSS ID ID IDM
Value 100 ±20 3 2.3 20
Unit V V A A A
Thermal Characteristics
Parameter Power Dissipation
- 1 Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Lead
- 1 Thermal Resistance Junction-to-Case Operating Junction...
