BL1014H - Phototransistor Photocoupler

This page provides the datasheet information for the BL1014H, a member of the BL1010 Phototransistor Photocoupler family.

Product Overview

GME

📥 Download Datasheet

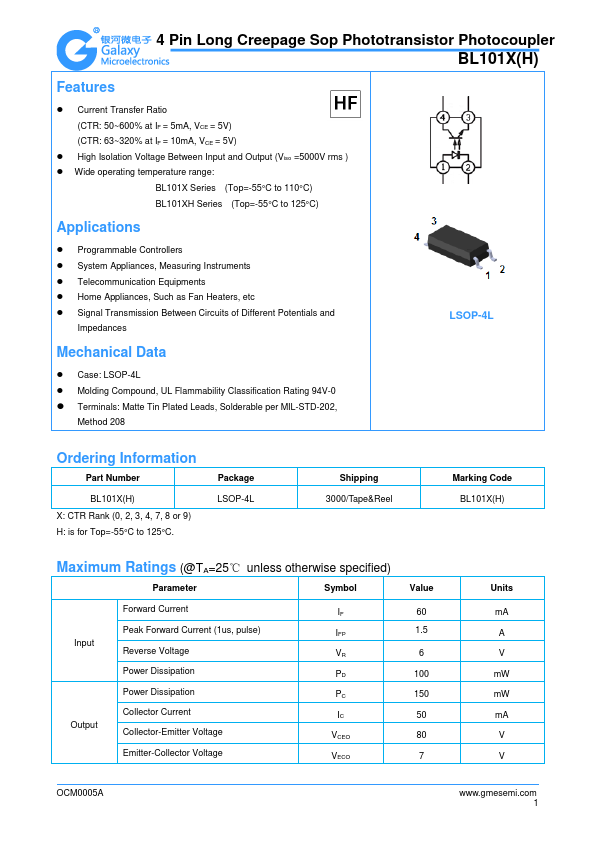

BL1014H Phototransistor Photocoupler by GME - Datasheet Preview — Datasheet preview – BL1014H

Datasheet Details

Part number	BL1014H
Manufacturer	GME
File Size	1.02 MB
Description	Phototransistor Photocoupler
Datasheet	BL1014H Datasheet

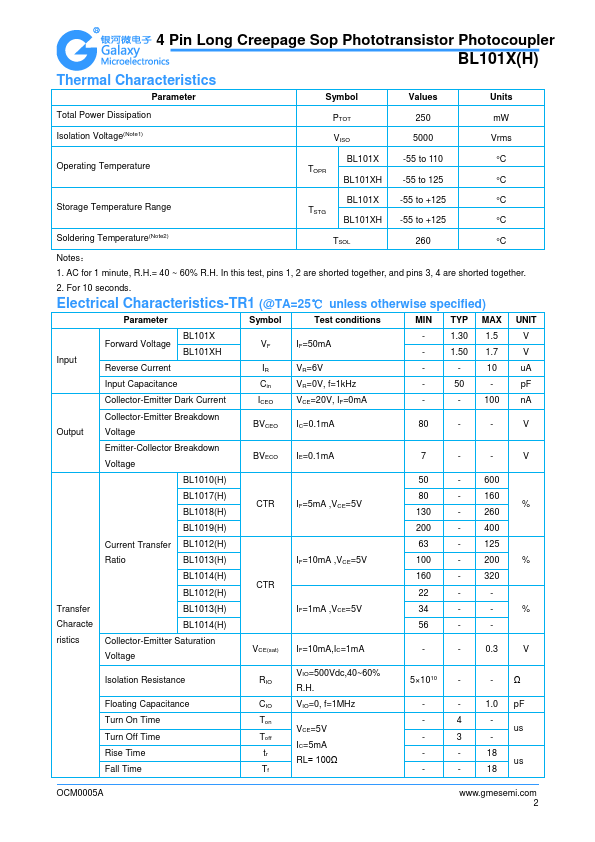

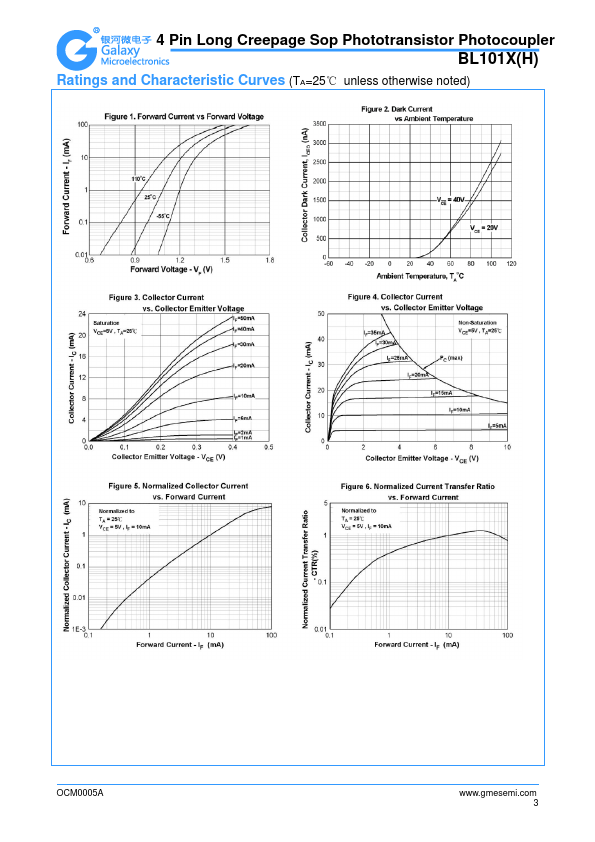

Additional preview pages of the BL1014H datasheet.

BL1014H Product details

Features

Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
High Isolation Voltage Between Input and Output (Viso =5000V rms ).
Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).
