BL200P03-3DL8 - P-Channel Enhancement Mode MOSFET

Features

  • Advanced trench technology.
  • Low on-resistance.
  • Fast switching speed.
  • HBM: JESD22-A114-B: 1A.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: PDFN3×3-8L.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number BL200P03-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 200P03 Maximum Rati.

📥 Download Datasheet

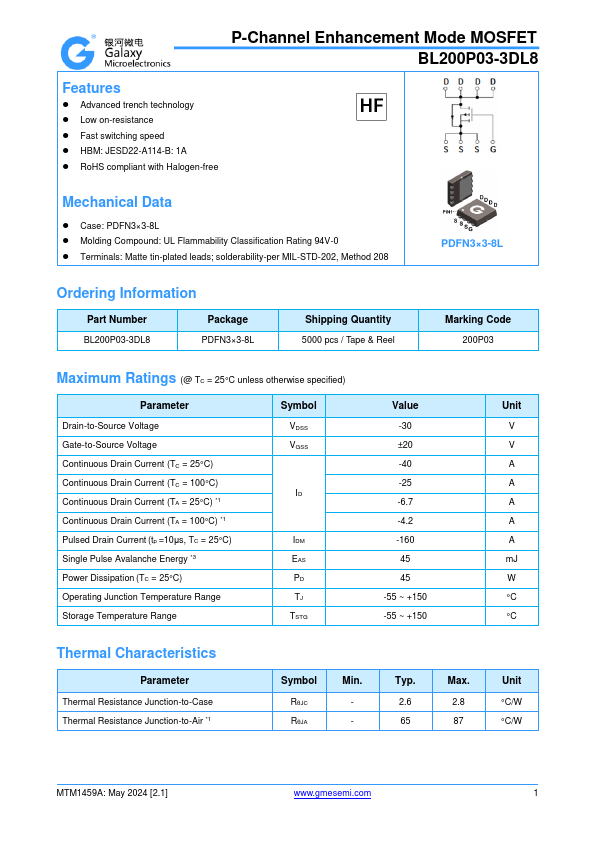

Datasheet preview – BL200P03-3DL8

📁 Similar Datasheet

Other Datasheets by GME
  • BL200N06-S8 - N-Channel Enhancement Mode MOSFET
  • BL200N06R - N-Channel Enhancement Mode MOSFET
  • BL2300 - N-Channel Power Mosfet
  • BL2301 - P-Channel Enhancement Mode Field Effect Transistor
  • BL2301W - P-Channel Enhancement MOSFET
  • BL2302 - N-Channel Enhancement Mode Field Effect Transistor
  • BL2303 - P-Channel Power Mosfet
  • BL2304 - N-Channel Power Mosfet

Full PDF Text Transcription

Click to expand full text
P-Channel Enhancement Mode MOSFET BL200P03-3DL8 Features  Advanced trench technology  Low on-resistance  Fast switching speed  HBM: JESD22-A114-B: 1A  RoHS compliant with Halogen-free Mechanical Data  Case: PDFN3×3-8L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number BL200P03-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 200P03 Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Continuous Drain Current (TA = 25°C) *1 Continuous Drain Current (TA = 100°C) *1 Pulsed Drain Cur
