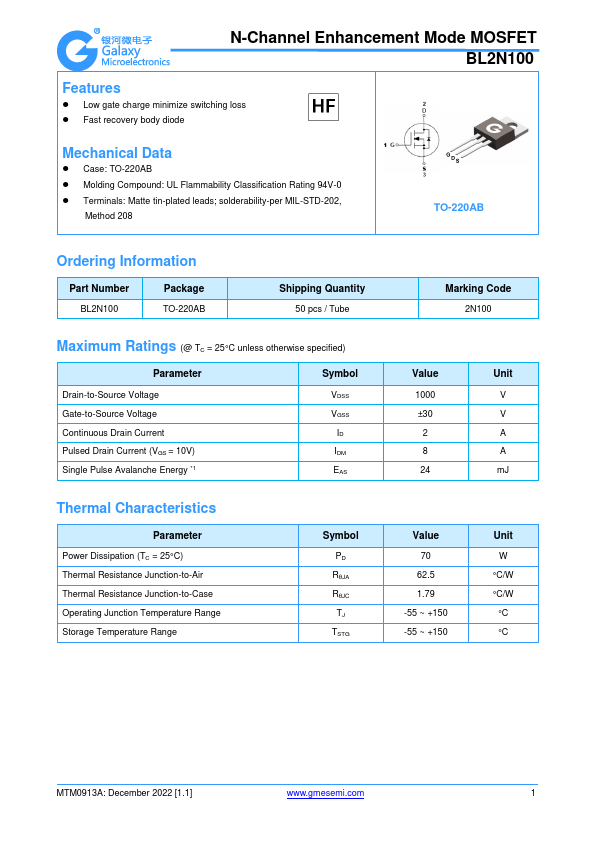

BL2N100
Features
- Low gate charge minimize switching loss
- Fast recovery body diode
Mechanical Data
- Case: TO-220AB
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
TO-220AB
Ordering Information
Part Number BL2N100
Package TO-220AB
Shipping Quantity 50 pcs / Tube
Maximum Ratings (@ TC = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current Pulsed Drain Current (VGS = 10V) Single Pulse Avalanche Energy
- 1
Symbol VDSS VGSS ID IDM EAS
Thermal Characteristics
Parameter Power Dissipation (TC = 25°C) Thermal Resistance Junction-to-Air Thermal Resistance Junction-to-Case Operating Junction Temperature Range Storage Temperature Range
Symbol PD RθJA RθJC TJ TSTG
Marking Code 2N100
Value 1000 ±30
2 8 24
Unit V V A A m J
Value 70 62.5 1.79
-55 ~ +150 -55 ~ +150
Unit W
°C/W °C/W
°C °C
MTM0913A: December 2022 [1.1]
.gmesemi.
N-Channe...
