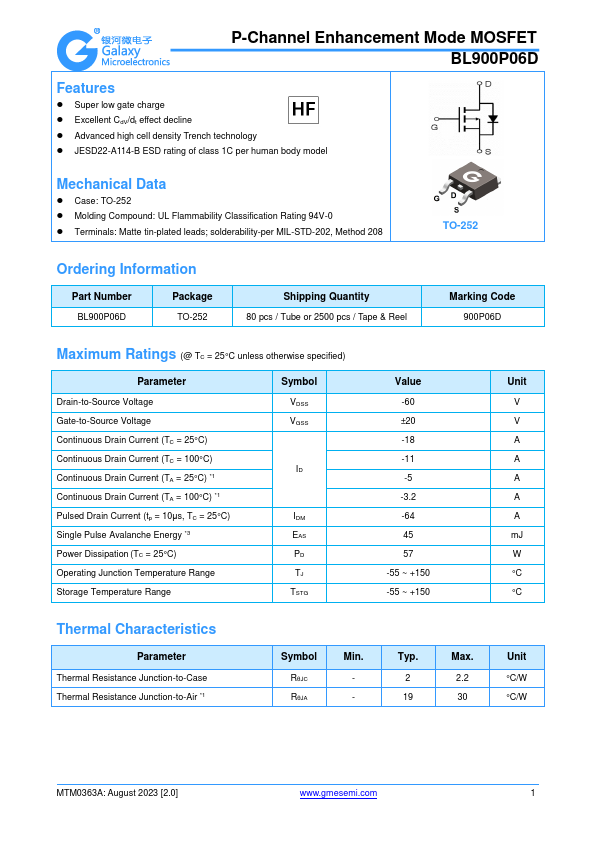

BL900P06D
Features
- Super low gate charge
- Excellent Cd V/dt effect decline
- Advanced high cell density Trench technology
- JESD22-A114-B ESD rating of class 1C per human body model
Mechanical Data
- Case: TO-252
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
TO-252
Ordering Information
Part Number BL900P06D
Package TO-252
Shipping Quantity 80 pcs / Tube or 2500 pcs / Tape & Reel
Marking Code 900P06D
Maximum Ratings (@ TC = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 100°C)
- 1 Pulsed Drain Current (tp = 10μs, TC = 25°C) Single Pulse Avalanche Energy
- 3 Power Dissipation (TC = 25°C) Operating Junction Temperature Range Storage Temperature Range
Symbol VDSS VGSS
IDM EAS PD TJ TSTG
Value -60 ±20 -18...
