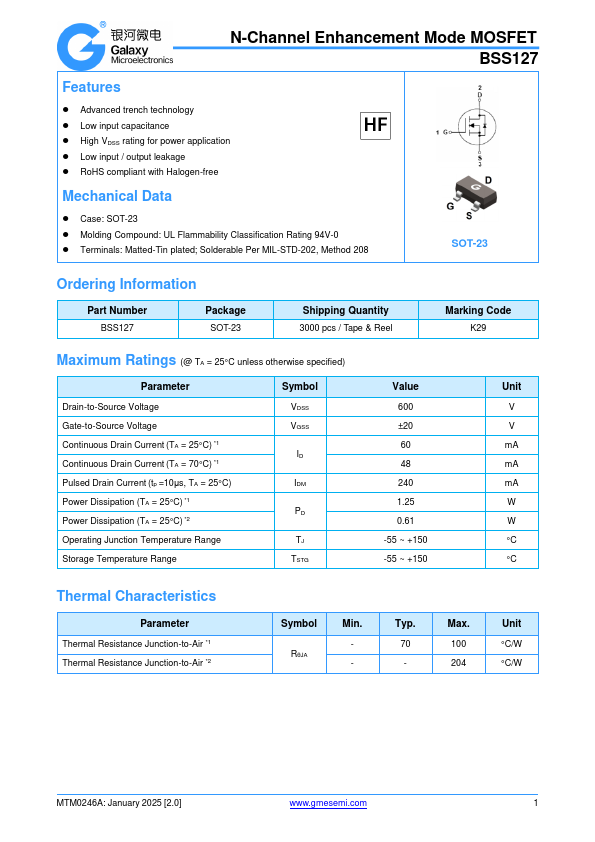

BSS127
Features
- Advanced trench technology
- Low input capacitance
- High VDSS rating for power application
- Low input / output leakage
- Ro HS pliant with Halogen-free
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matted-Tin plated; Solderable Per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number BSS127
Package SOT-23
Shipping Quantity 3000 pcs / Tape & Reel
Marking Code K29
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 70°C)
- 1 Pulsed Drain Current (tp =10μs, TA = 25°C) Power Dissipation (TA = 25°C)
- 1 Power Dissipation (TA = 25°C)
- 2 Operating Junction Temperature Range Storage Temperature Range
Symbol VDSS VGSS ID IDM PD TJ TSTG
Value 600 ±20 60 48 240 1.25 0.61
-55 ~ +150 -55 ~ +150
Unit V V m A m A m A W W °C °C
Thermal Characteristics
Parameter Thermal Resistance...
