BZD27C180P - Transient Voltage Suppressor

Download the BZD27C180P datasheet PDF (BZD27C5V6P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for transient voltage suppressor.

Features

  • Sillicon planar zener diodes.
  • Low profile surface-mount package.
  • Low leakage current.
  • High temperature solder ability for terminals: 260°C @ 10s.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SOD-123FL molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipati.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZD27C5V6P-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

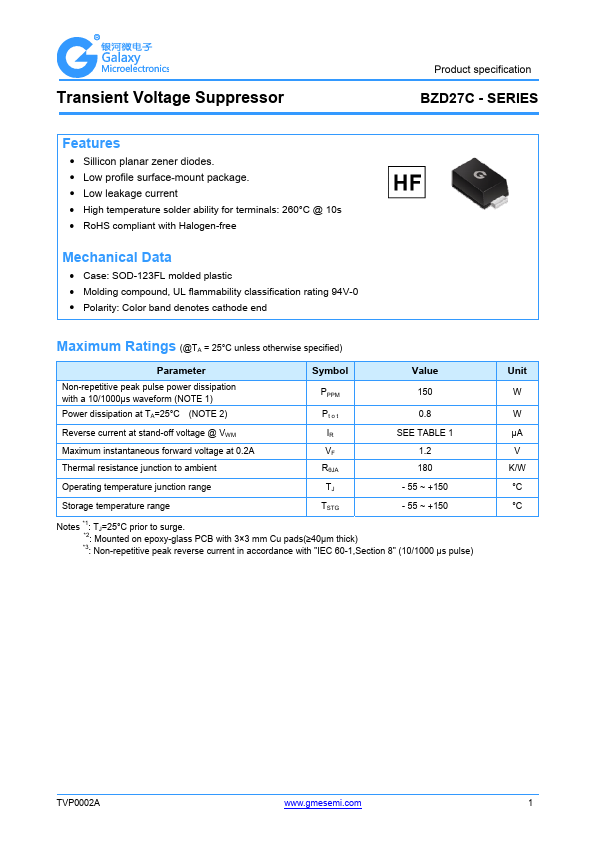

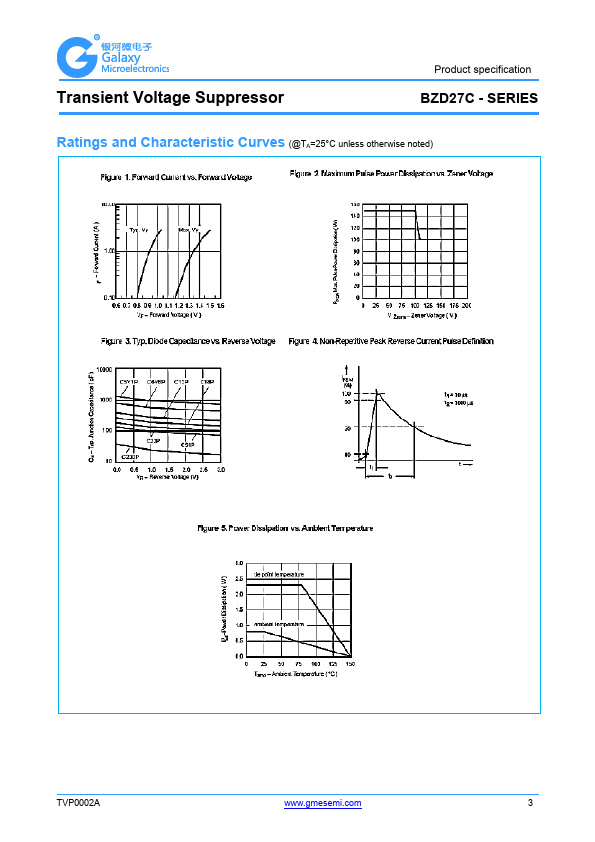

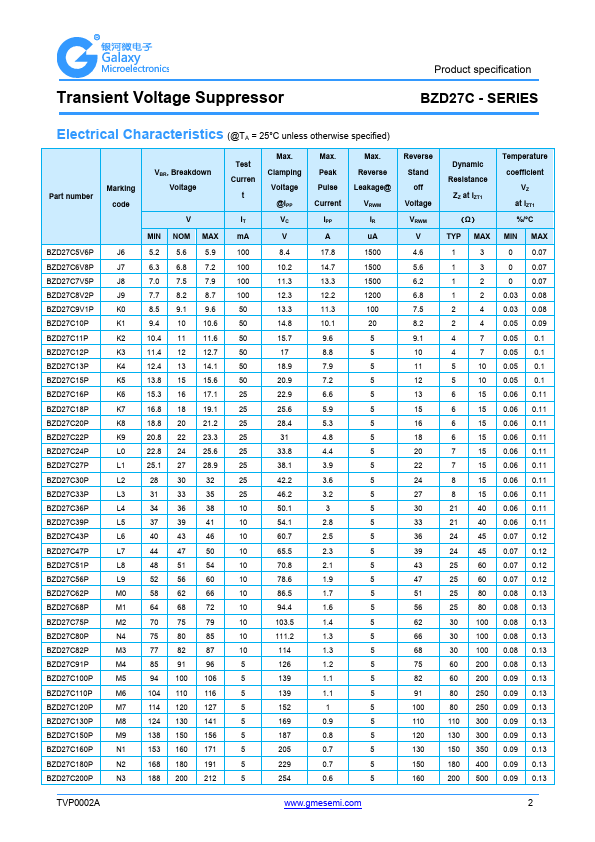

Transient Voltage Suppressor Product specification BZD27C - SERIES Features  Sillicon planar zener diodes.  Low profile surface-mount package.  Low leakage current  High temperature solder ability for terminals: 260°C @ 10s  RoHS compliant with Halogen-free Mechanical Data  Case: SOD-123FL molded plastic  Molding compound, UL flammability classification rating 94V-0  Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipation with a 10/1000μs waveform (NOTE 1) Power dissipation at TA=25°C (NOTE 2) PPPM 150 Pt o t 0.8 Reverse current at stand-off voltage @ VWM IR SEE TABLE 1 Maximum instantaneous forward voltage at 0.2A VF 1.
