BZD27C5V6P - Transient Voltage Suppressor

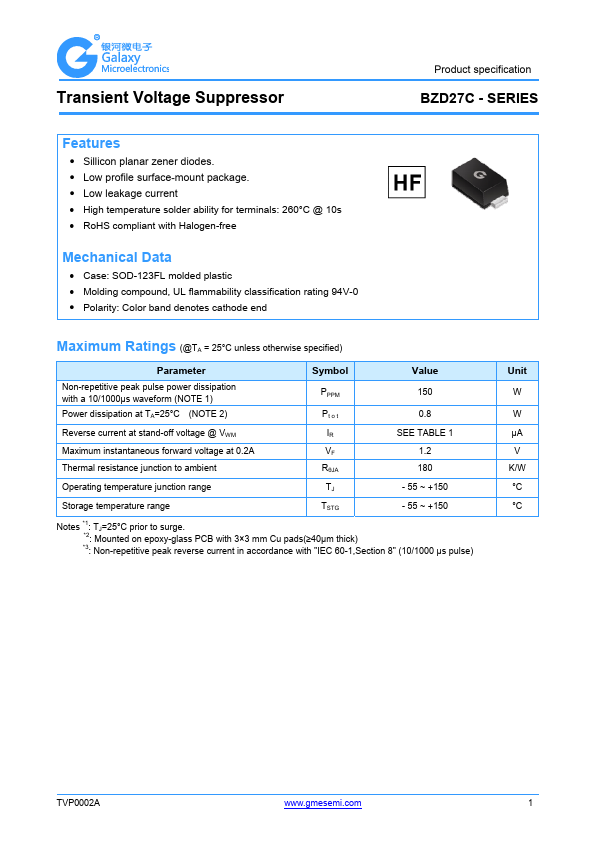

Key Features

  • Sillicon planar zener diodes.
  • Low profile surface-mount package.
  • Low leakage current.
  • High temperature solder ability for terminals: 260°C @ 10s.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SOD-123FL molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipati.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZD27C5V6P Zener Diodes Vishay
BZD27C5V6P 800mW ZENER DIODES Pan Jit International
BZD27C5V6P VOLTAGE REGULATOR DIODES GALAXY ELECTRICAL
BZD27C5V6P Voltage Regulator Diodes LGE
BZD27C5V6P-M Zener Diodes Vishay

Other Datasheets by Galaxy Microelectronics

Part Number Description
BZD27C51P Transient Voltage Suppressor
BZD27C51P Transient Voltage Suppressor
BZD27C56P Transient Voltage Suppressor
BZD27C56P Transient Voltage Suppressor
BZD27C100P Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

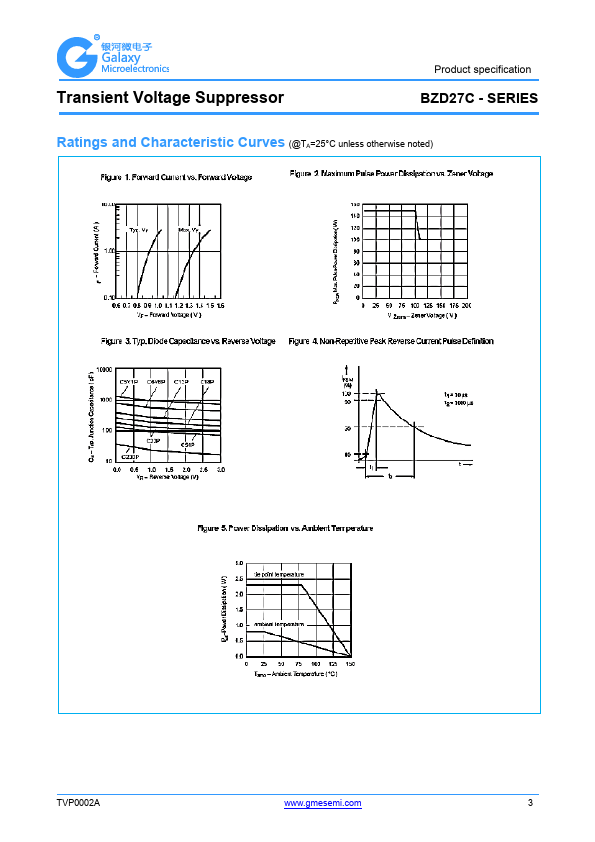

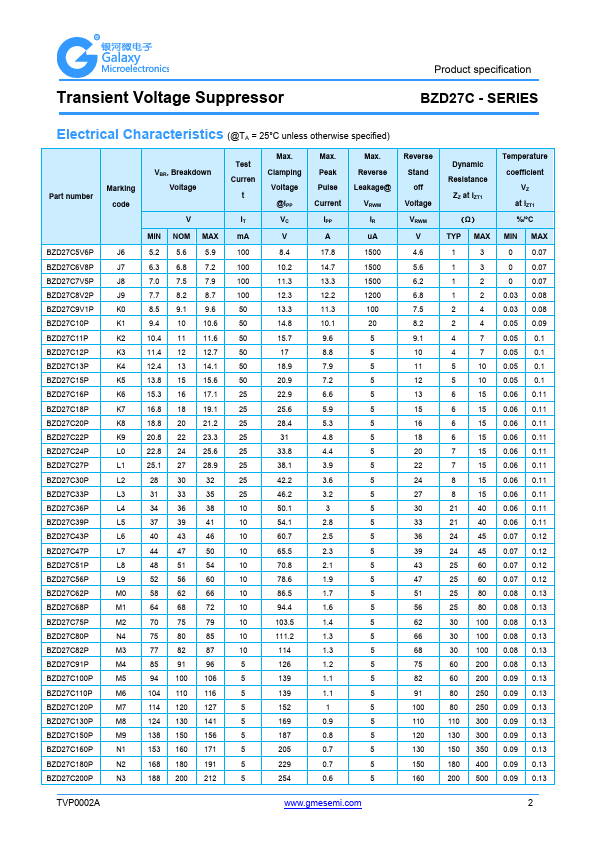

Transient Voltage Suppressor Product specification BZD27C - SERIES Features  Sillicon planar zener diodes.  Low profile surface-mount package.  Low leakage current  High temperature solder ability for terminals: 260°C @ 10s  RoHS compliant with Halogen-free Mechanical Data  Case: SOD-123FL molded plastic  Molding compound, UL flammability classification rating 94V-0  Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipation with a 10/1000μs waveform (NOTE 1) Power dissipation at TA=25°C (NOTE 2) PPPM 150 Pt o t 0.8 Reverse current at stand-off voltage @ VWM IR SEE TABLE 1 Maximum instantaneous forward voltage at 0.2A VF 1.
